Same model may have multiple batches, images only for reference.

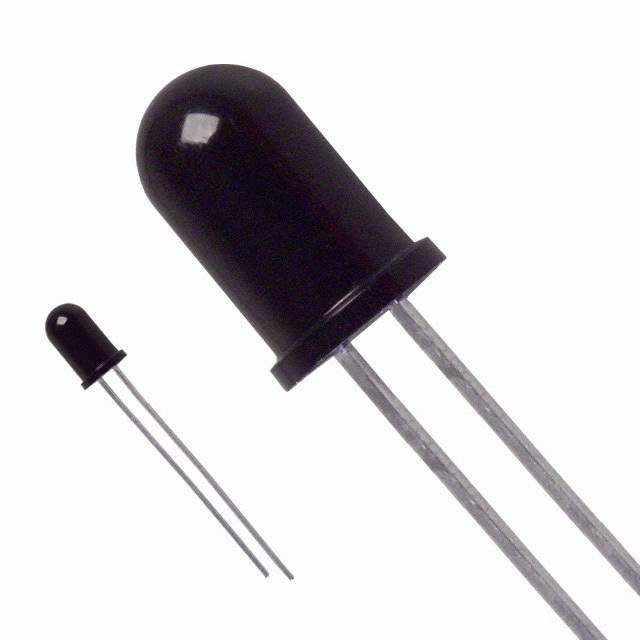

QSD122 Real Image
Same model may have multiple batches, images only for reference.

QSD122

Part No QSD122
Manufacturer Fairchild/ON Semiconductor
Catalog Optical Sensors - Phototransistors
Description IC PHOTOTRANS IR 880NM BLACK 5MM
Datasheet
QSD122 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Fairchild/ON Semiconductor
Status Obsolete(EOL)
VCEO Maximum Collector-Emitter Breakdown Voltage 30V
Current - Dark (Id) (Max) 100nA
Wavelength 880nm
Viewing Angle 24°
Maximum Power Dissipation 100mW
Mounting Through Hole
Orientation Top View
Temperature Range - Operating -40°C to 100°C (TA)
Dimension T 1 3/4
Win Source Part Number 097508-QSD122
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Quantity per package 250
Ultra Librarian 3D Model Ultra Librarian QSD122 CAD Model

Description

The Fairchild/ON Semiconductor 097508-QSD122 is an obsolete (EOL) electronic component that has a high popularity in the market.

  • Orientation: top view
  • Mounting: through-hole
  • Viewing Angle: 24 degrees
  • Wavelength: 880nm
  • Maximum Collector-Emitter Breakdown Voltage: 30V
  • Maximum Power Dissipation: 100mW
  • Usage: common-used part
  • Supply and Demand Status: sufficient
  • Applications: various electronic devices, wide range of applications
