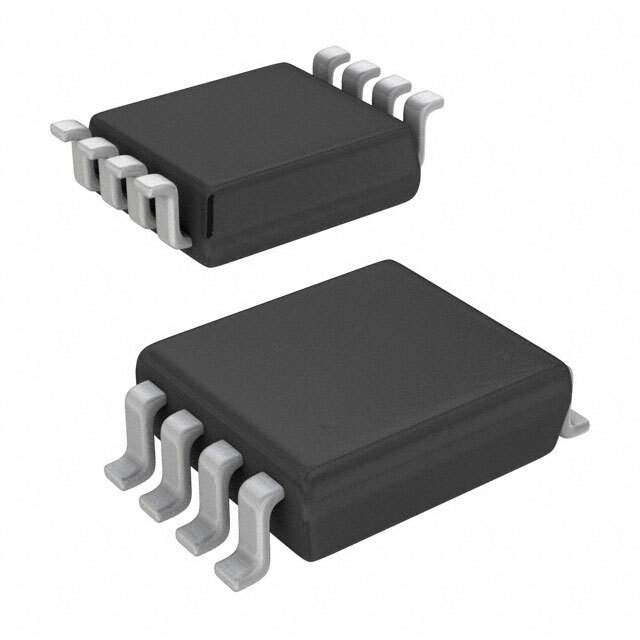

NC7WZ86K8X Real Image NC7WZ86K8X Real Image
Same model may have multiple batches, images only for reference.

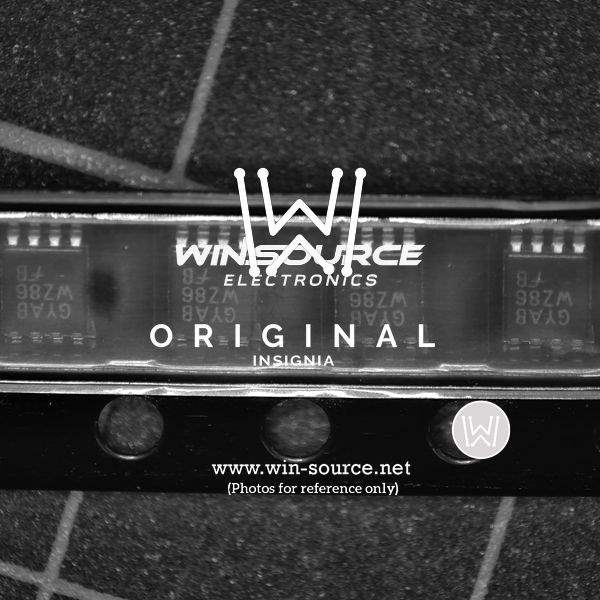

NC7WZ86K8X Real Image NC7WZ86K8X Real Image
NC7WZ86K8X Real Image NC7WZ86K8X Real Image
Same model may have multiple batches, images only for reference.

NC7WZ86K8X

Part No NC7WZ86K8X
Manufacturer Fairchild/ON Semiconductor
Catalog Logic - Gates and Inverters
Description IC GATE XOR 2CH 2-INP US8
Datasheet
NC7WZ86K8X Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Logic Type XOR (Exclusive OR)
Number of Circuits 2
Number of Inputs 2
Supply Voltage - Operating 1.65 V to 5.5 V
Current - Quiescent (Max) 1μA
Current - Output High, Low 32mA, 32mA
Max Propagation Delay @ V, Max CL 4.2ns @ 5V, 50pF
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Case / Package US8
Dimension 8-VFSOP (0.091", 2.30mm Width)
Win Source Part Number 059920-NC7WZ86K8X
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Industrial
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian NC7WZ86K8X CAD Model

Description

The Fairchild/ON Semiconductor 059920-NC7WZ86K8X is a two-circuit XOR (Exclusive OR) logic gate integrated circuit.

  • Mounting: SMD (SMT)
  • Category: Integrated Circuits
  • Status: Active
  • Max Propagation Delay: 4.2ns @ 5V, 50pF
  • Current - Quiescent (max): 1μA
  • Temperature Range: -40°C to 85°C
  • Supply Voltage: 1.65 V to 5.5 V
  • Application: Industrial
  • Popularity: Medium
  • Supply and Demand: Balanced
  • Quantity per Package: 3k pcs
