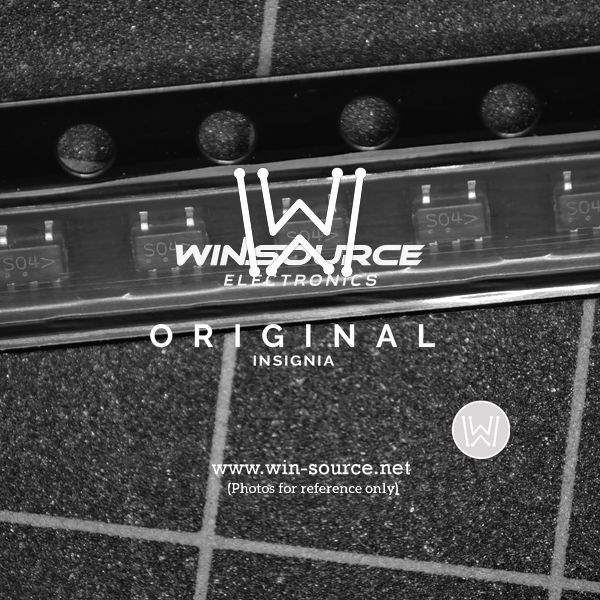

NC7S04P5X Real Image NC7S04P5X Real Image
Same model may have multiple batches, images only for reference.
NC7S04P5X Real Image NC7S04P5X Real Image
NC7S04P5X Real Image NC7S04P5X Real Image
Same model may have multiple batches, images only for reference.

NC7S04P5X

Part No NC7S04P5X
Manufacturer Fairchild/ON Semiconductor
Catalog Logic - Gates and Inverters
Description IC INVERTER HS SINGLE SC70-5
Datasheet
NC7S04P5X Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Logic Type Inverter
Number of Circuits 1
Number of Inputs 1
Supply Voltage - Operating 2 V to 6 V
Current - Quiescent (Max) 1μA
Current - Output High, Low 2.6mA, 2.6mA
Logic Level - Low 0.5V
Logic Level - High 1.5V
Max Propagation Delay @ V, Max CL 17ns @ 6V, 50pF
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Case / Package SC-70-5
Dimension 5-TSSOP, SC-70-5, SOT-353
Win Source Part Number 024730-NC7S04P5X
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian NC7S04P5X CAD Model

Description

The Fairchild/ON Semiconductor NC7S04P5X Inverter is a high-quality integrated circuit used in various electronic devices.

  • Manufacturer: Fairchild/ON Semiconductor
  • Win Source Part Number: 024730
  • Supply and Demand Status: Sufficient
