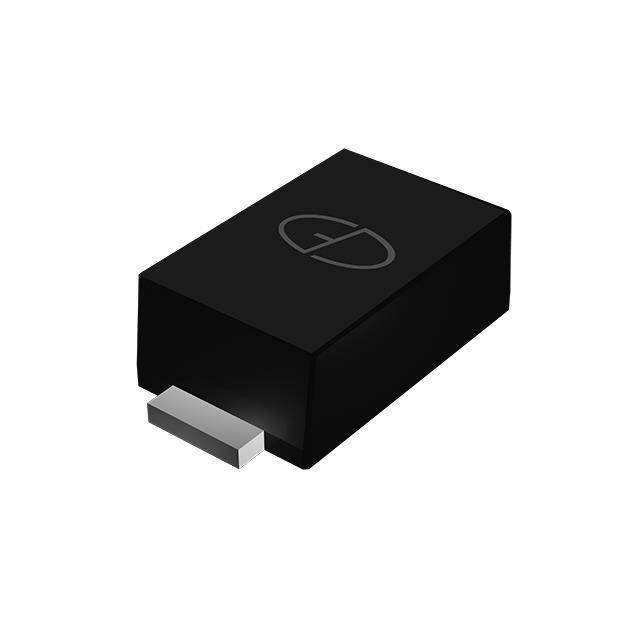

MMSZ5245B Real Image MMSZ5245B Real Image
Same model may have multiple batches, images only for reference.
MMSZ5245B Real Image MMSZ5245B Real Image
MMSZ5245B Real Image MMSZ5245B Real Image
Same model may have multiple batches, images only for reference.

MMSZ5245B

Part No MMSZ5245B
Manufacturer Fairchild/ON Semiconductor
Catalog Diodes - Zener - Single
Description DIODE ZENER 15V 500MW SOD123
Datasheet
MMSZ5245B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer ON Semiconductor
Packaging Reel - TR
Status Active
Voltage - Zener (Nom) (Vz) 15V
Tolerance ±5%
Maximum Power Dissipation 500mW
Impedance (Max) (Zzt) 16 Ohm
Current - Reverse Leakage @ Vr 100nA @ 11V
Voltage - Forward (Vf) (Max) @ If 900mV @ 10mA
Temperature Range - Operating -55°C to 150°C
Mounting SMD (SMT)
Case / Package SOD-123
Win Source Part Number 095961-MMSZ5245B
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Package Tape & Reel (TR)
Product Status Active
Power - Max 500mW
Impedance (Max) (Zzt) 16 Ohms
Operating Temperature -65°C ~ 150°C (TJ)
Grade -
Mounting Type Surface Mount
Package / Case SOD-123F
Supplier Device Package SOD-123F
Ultra Librarian 3D Model Ultra Librarian MMSZ5245B CAD Model

Description

The ON Semiconductor 095961-MMSZ5245B is a SMD (SMT) mounted zener diode with a voltage rating of 15V and a maximum power dissipation of 500mW.

  • Forward Voltage: 900mV @ 10mA
  • Reverse Leakage Current: 100nA @ 11V
  • Impedance (Max) (Zzt): 16 Ohm
  • Suitable for: Discrete Semiconductor Products
  • Packaging: Reel - TR
  • Tolerance: ±5%
  • Operating Temperature Range: -55°C to 150°C
  • Supply and Demand Status: Balanced
