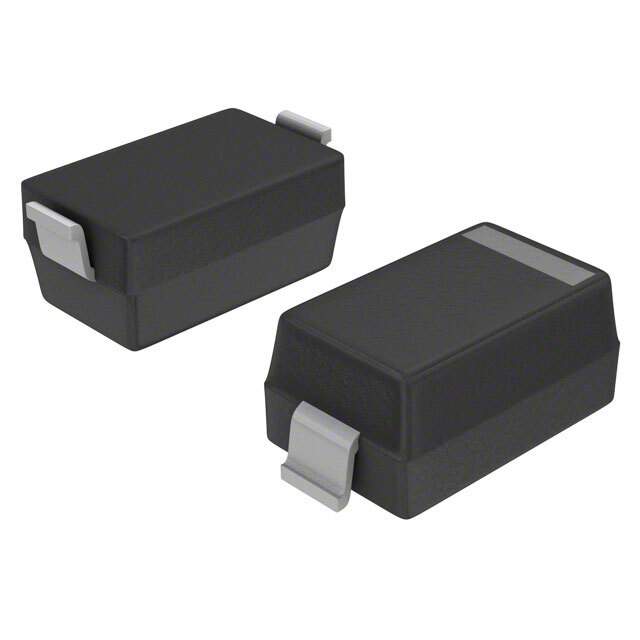

MMSD3070 Real Image
Same model may have multiple batches, images only for reference.

MMSD3070

Part No MMSD3070
Manufacturer Fairchild/ON Semiconductor
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 200V 200MA SOD123
Datasheet
MMSD3070 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 200V
Current - Average Rectified (Io) 200mA
Voltage - Forward (Vf) (Max) @ If 1V @ 100mA
Reverse Recovery Time (trr) 50ns
Current - Reverse Leakage @ Vr 100nA @ 175V
Capacitance @ Vr, F 5pF @ 0V, 1MHz
Mounting SMD (SMT)
Case / Package SOD-123
Operating Temperature - Junction 150°C (Max)
Win Source Part Number 059222-MMSD3070
Popularity Medium
Supply and Demand Status Balance
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian MMSD3070 CAD Model

Description

The MMSD3070 is a standard diode from Fairchild/ON Semiconductor.

  • Application: It is designed for use in general purpose applications
  • Maximum Reverse Voltage Rating: 200V
  • Forward Voltage Drop: 1V @ 100mA
  • Reverse Recovery Time: 50ns
  • Package: It is available in a compact SOD-123 package
  • Suitability: It is suitable for use in a wide range of applications, including power supplies, lighting, and motor control systems.
