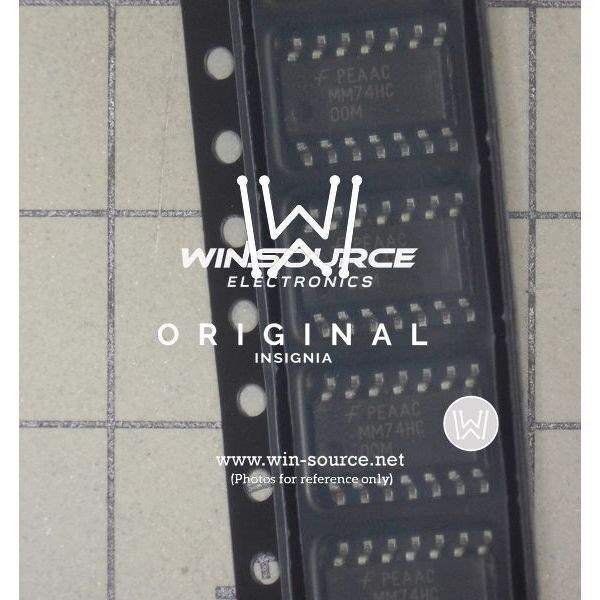

MM74HC00MX Real Image MM74HC00MX real image MM74HC00MX real image3326
Same model may have multiple batches, images only for reference.

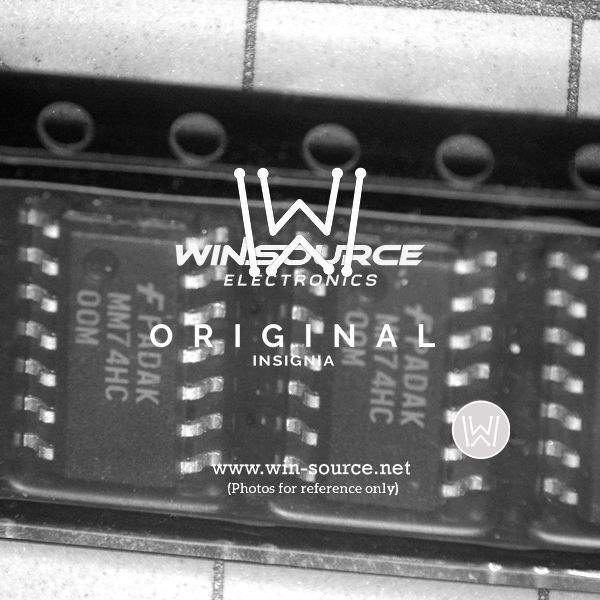

MM74HC00MX Real Image MM74HC00MX real image MM74HC00MX real image3326
MM74HC00MX Real Image MM74HC00MX real image MM74HC00MX real image3326
Same model may have multiple batches, images only for reference.

MM74HC00MX

Part No MM74HC00MX
Manufacturer Fairchild/ON Semiconductor
Catalog Logic - Gates and Inverters
Description IC GATE NAND 4CH 2-INP 14-SOIC
Datasheet
MM74HC00MX Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Logic Type NAND Gate
Number of Circuits 4
Number of Inputs 2
Supply Voltage - Operating 2 V to 6 V
Current - Quiescent (Max) 2μA
Current - Output High, Low 5.2mA, 5.2mA
Logic Level - Low 0.5 V to 1.8 V
Logic Level - High 1.5 V to 4.2 V
Max Propagation Delay @ V, Max CL 15ns @ 6V, 50pF
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Case / Package 14-SOIC
Dimension 14-SOIC (0.154", 3.90mm Width)
Win Source Part Number 023587-MM74HC00MX
Family Name MM74HC00
Introduction Date September 01, 1983
ECCN EAR99
Country of Origin Israel
Halogen Free Compliant
Estimated EOL Date 2024
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Application Field Used in Microwave
Quantity per package 2,500
Ultra Librarian 3D Model Ultra Librarian MM74HC00MX CAD Model

Description

The Fairchild/ON Semiconductor MM74HC00MX is a 14-SOIC integrated circuit that contains four NAND gates with two inputs each.

  • Current Output High: 5.2mA
  • Current Output Low: 5.2mA
  • Maximum Propagation Delay: 15ns @ 6V and 50pF
  • Supply Voltage: 2V to 6V
  • Quiescent Current: 2μA
  • Supply and Demand Status: Sufficient
  • Application: Microwave
