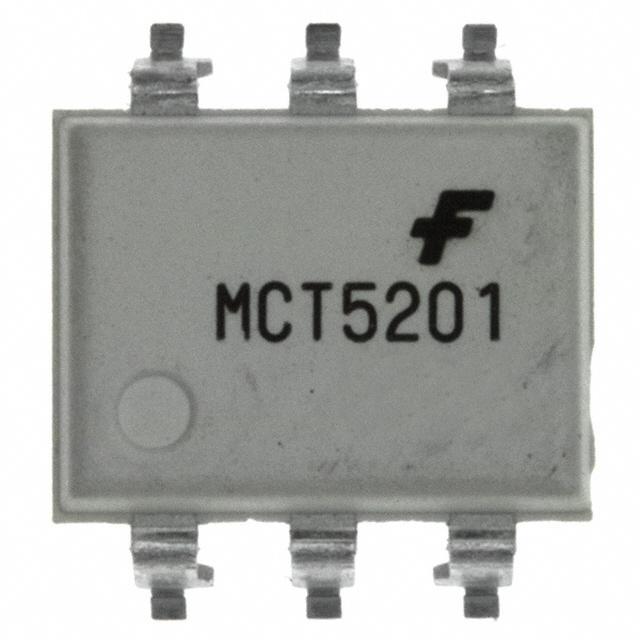

MCT5201SM Fairchild/ON Semiconductor
Same model may have multiple batches, images only for reference.

MCT5201SM

Part No MCT5201SM
Manufacturer Fairchild/ON Semiconductor
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISO 7.5KV TRANS W/BASE 6SMD
Datasheet
MCT5201SM Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Fairchild/ON Semiconductor
Packaging Tube/Rail
Status Obsolete(EOL)
Number of Channels 1
Isolation Voltage 7500Vpk
Minimum DC Current Transfer Ratio 120% @ 5mA
Rise and Fall Time 2.5μs, 16μs
Input Type DC
Maximum Output Voltage 30V
Channel Output Current 150mA
Forward Voltage 1.25V
Continuous forward current- Max 50mA
Vce Saturation (Max) 400mV
Temperature Range - Operating -40°C to 100°C
Mounting SMD (SMT)
Case / Package 6-SMD
Win Source Part Number 1075604-MCT5201SM
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian MCT5201SM CAD Model

Description

The Fairchild/ON Semiconductor 473380 is an obsolete (EOL) DC input type optocoupler with 1 channel and an isolation voltage of 7500Vpk.

  • Mounting Type: Surface Mount Device (SMD)
  • Package: 6-SMD
  • Forward Voltage: 1.25V
  • Minimum DC Current Transfer Ratio: 120% @ 5mA
  • Switching Turn-On Time: Not Specified
  • Switching Turn-Off Time: Not Specified
  • Rise Time: 2.5μs
  • Fall Time: 16μs
  • Maximum Output Voltage: 30V
  • Channel Output Current: 150mA
  • Continuous Forward Current: 50mA
  • Application: Isolators
