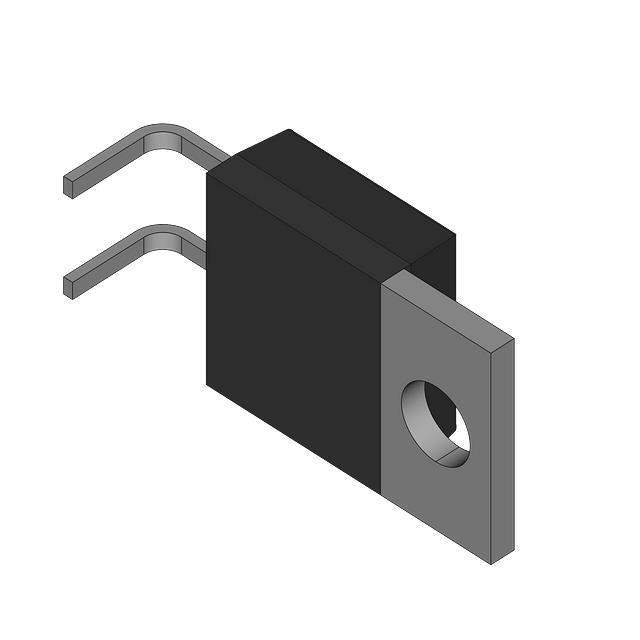

ISL9R860PF2 Real Image
Same model may have multiple batches, images only for reference.

ISL9R860PF2

Part No ISL9R860PF2
Manufacturer Fairchild/ON Semiconductor
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 600V 8A TO220F
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Tube/Rail
Status Active
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 600V
Current - Average Rectified (Io) 8A
Voltage - Forward (Vf) (Max) @ If 2.4V @ 8A
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 30ns
Current - Reverse Leakage @ Vr 100μA @ 600V
Mounting Through Hole
Case / Package TO-220F-2L
Operating Temperature - Junction -55°C to 150°C
Win Source Part Number 070201-ISL9R860PF2
Popularity Medium
Supply and Demand Status Balance
Quantity per package 1k pcs
Ultra Librarian 3D Model Ultra Librarian ISL9R860PF2 CAD Model

Description

The Fairchild/ON Semiconductor 070201-ISL9R860PF2 is a standard diode with a voltage rating of 600V.

  • Maximum forward voltage: 2.4V @ 8A
  • Reverse recovery time: 30ns
  • Average rectified current: 8A
  • Reverse leakage current: 100μA @ 600V
  • Package: TO-220F-2L
  • Mounting: Through hole
  • Fast Recovery Speed: 200mA (Io)
  • Package Contains: 1,000 pieces
