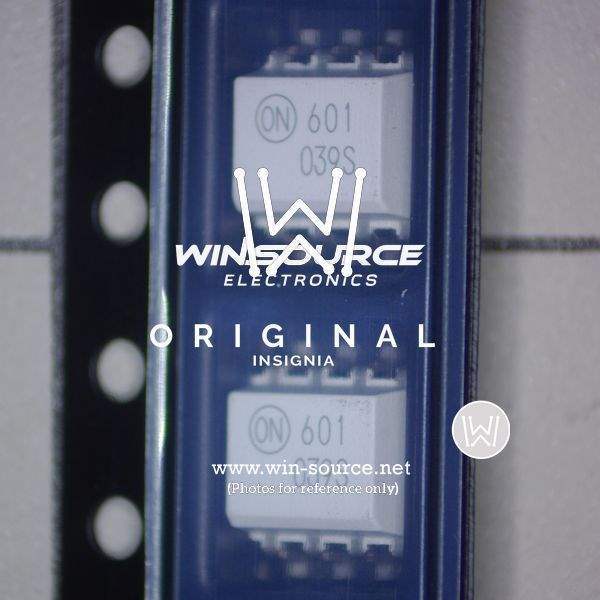

HCPL0601 Real Image HCPL0601 real image
Same model may have multiple batches, images only for reference.
HCPL0601 Real Image HCPL0601 real image
HCPL0601 Real Image HCPL0601 real image
Same model may have multiple batches, images only for reference.

HCPL0601

Part No HCPL0601
Manufacturer Fairchild/ON Semiconductor
Catalog Optoisolators - Logic Output
Description OPTOISO 3.75KV OPN COLLECTOR 8SO
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Fairchild/ON Semiconductor
Packaging Tube/Rail
Status Active
Number of Channels 1
Inputs - Side 1/Side 2 1/0
Isolation Voltage 3750Vrms
Common Mode Transient Immunity (Min) 10kV/μs
Input Type DC
Output Type Open Collector
Channel Output Current 50mA
Data Rate 10Mbps
Propagation Delay tpLH / tpHL (Max) 75ns, 75ns
Rise and Fall Time 50ns, 12ns
Forward Voltage 1.75V (Max)
Continuous forward current- Max 50mA
Supply Voltage - Operating 4.5 V to 5.5 V
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Case / Package 8-SO Tall
Win Source Part Number 067866-HCPL0601
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Power Management, Motor Drive & Control, Industrial, Computers & Computer Peripherals
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian HCPL0601 CAD Model

Description

The HCPL0601 is an isolator manufactured by Fairchild/ON Semiconductor.

  • Output Type: Open Collector
  • Data Rate: 10Mbps
  • Common Mode Transient Immunity: 10kV/μs
  • Propagation Delay tpLH / tpHL (Max): 75ns, 75ns
  • Isolation Voltage: 3750Vrms
  • Channels: 1
  • Inputs (Side 1/Side 2): 1/0
  • Rise Time: 50ns
  • Fall Time: 12ns
  • Channel Output Current: 50mA
  • Continuous Forward Current: 50mA
  • Case/Package: 8-SO Tall
  • Operating Temperature: -40°C to 85°C
  • Applications: Power Management, Motor Drive & Control, Industrial, and Computers & Computer Peripherals
