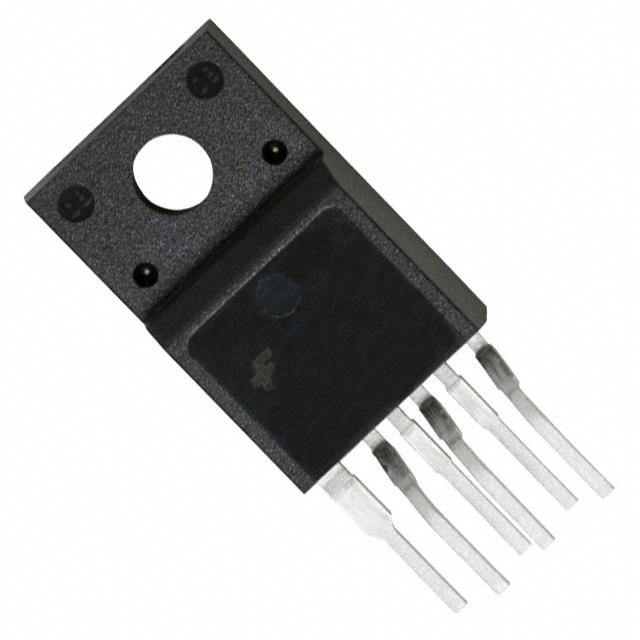

FSGM0765RWDTU Fairchild/ON Semiconductor
Same model may have multiple batches, images only for reference.

FSGM0765RWDTU

Part No FSGM0765RWDTU
Manufacturer Fairchild/ON Semiconductor
Catalog PMIC - AC DC Converters, Offline Switchers
Description Green-Mode Fairchild Power Switch
Datasheet
FSGM0765RWDTU Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Fairchild/ON Semiconductor
Series FPS
Packaging Tube
Output Isolation Isolated
Internal Switch(s) Yes
Voltage - Breakdown 650V
Topology Flyback
Voltage - Start Up 12V
Supply Voltage 7.5 V ~ 26 V
Duty Cycle 70%
Frequency - Switching 66kHz
Power (Watts) 90W
Fault Protection Current Limiting, Over Load, Over Temperature, Over Voltage, Short Circuit
Operating Temperature Range -40°C ~ 125°C (TJ)
Package TO-220-6 Full Pack, Formed Leads
Manufacturer Package TO-220F-6L (W-Forming)
Mounting SMD
Win Source Part Number 1175958-FSGM0765RWDTU
Manufacturer Homepage www.fairchildsemi.com
Popularity Medium
Supply and Demand Status Limited
Family Name FSGM0765R
Introduction Date January 01, 2010
ECCN EAR99
Country of Origin Philippines
Halogen Free Compliant
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian FSGM0765RWDTU CAD Model

Description

The Fairchild/ON Semiconductor FSGM0765RWDTU is a Flyback Switching Regulator that is part of the FPS series.

  • Series: FPS
  • Power Output: 90W
  • Temperature Range: -40°C to 125°C (TJ)
  • Package: TO-220-6 Full Pack, Formed Leads
  • Internal Switches: Current limiting, over load, over temperature, over voltage, and short circuit protection
  • Voltage Breakdown: 650V
  • Duty Cycle: 70%
  • Frequency Switching: 66kHz
  • Isolation: Isolated
  • Supply Voltage: 7.5 V to 26 V
