FPF2700MPX Fairchild/ON Semiconductor FPF2700MPX Real Image FPF2700MPX real image15468
Same model may have multiple batches, images only for reference.
FPF2700MPX Fairchild/ON Semiconductor FPF2700MPX Real Image FPF2700MPX real image15468
FPF2700MPX Fairchild/ON Semiconductor FPF2700MPX Real Image FPF2700MPX real image15468
Same model may have multiple batches, images only for reference.

FPF2700MPX

Part No FPF2700MPX
Manufacturer Fairchild/ON Semiconductor
Catalog PMIC - Power Distribution Switches, Load Drivers
Description IC LOAD SWITCH CURR LIMIT 8-MLP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Active
Switch Type General Purpose
Number of Outputs 1
Output Type N-Channel
Voltage - Load 2.8 V to 36 V
Supply Voltage - Operating Not Required
Current - Output (Max) 2A
Rds On (Typ) 88 mOhm
Input Type Non-Inverting
Features Auto Restart, Power Good, Slew Rate Controlled, Status Flag
Fault Protection Current Limiting (Adjustable), Over Temperature, UVLO
Temperature Range - Operating -40°C to 85°C (TA)

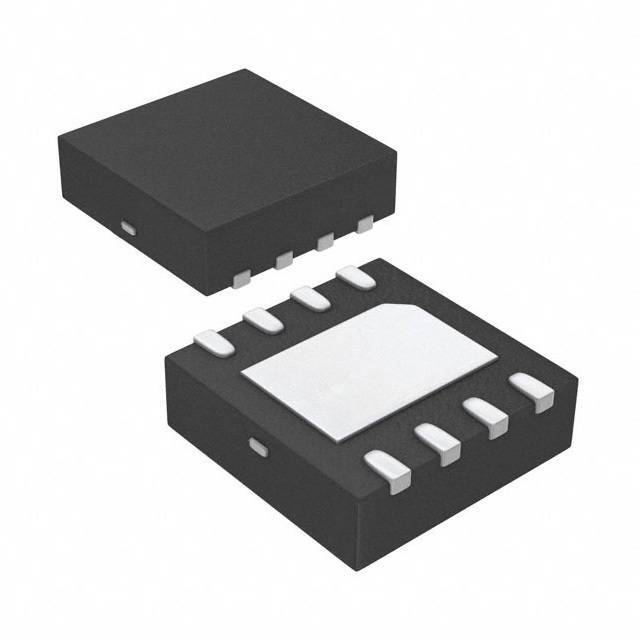

Case / Package 8-MLP (3x3)
Win Source Part Number 1039527-FPF2700MPX
Family Name FPF2700
Introduction Date November 05, 2010
ECCN EAR99
Country of Origin Thailand
Halogen Free Compliant
Estimated EOL Date 2029
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian FPF2700MPX CAD Model

Description

The Fairchild/ON Semiconductor FPF2700MPX is an integrated circuit with a single N-channel output and a maximum output current of 2A.

  • Output: Single N-channel
  • Output Current (Max): 2A
  • Voltage Load Range: 2.8V to 36V
  • On-Resistance (Typ): 88mOhm
  • Functions: Auto Restart, Power Good, Slew Rate Controlled, Status Flag
  • Fault Protection: Current Limiting, Over Temperature, Undervoltage Lockout (UVLO)
  • Package: 8-MLP (3x3)
  • Category: Integrated Circuits
  • Status: Active
  • Temperature Range: -40°C to 85°C
