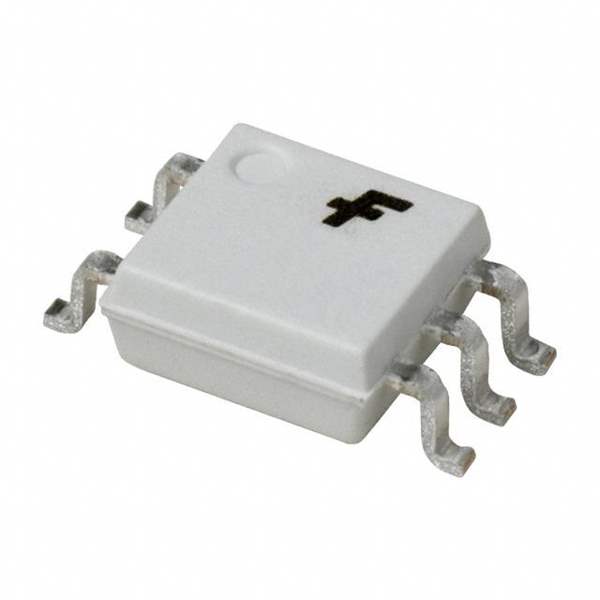

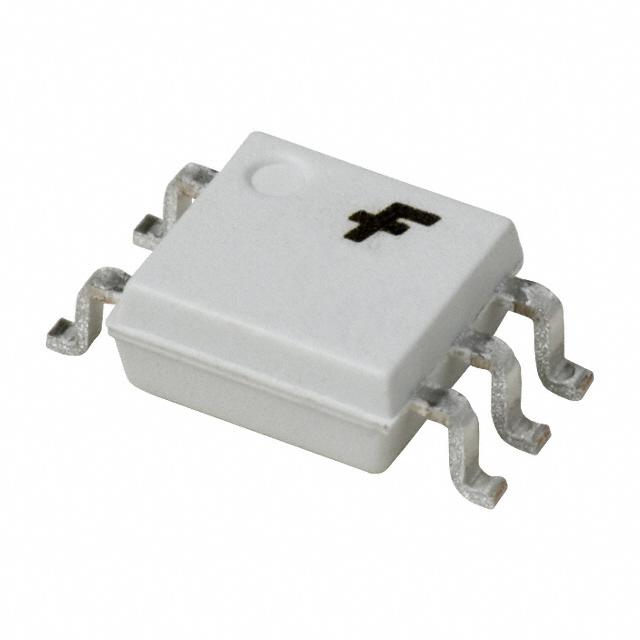

FODM453R1V Fairchild/ON Semiconductor
Same model may have multiple batches, images only for reference.

FODM453R1V

Part No FODM453R1V
Manufacturer Fairchild/ON Semiconductor
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISO 3.75KV TRANSISTOR 5MFP
Datasheet
FODM453R1V Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Obsolete(EOL)
Number of Channels 1
Isolation Voltage 3750Vrms
Minimum DC Current Transfer Ratio 20% @ 16mA
Maximum DC Current Transfer Ratio 50% @ 16mA
Switching Turn-On and Turn-Off Time 400ns, 350ns
Input Type DC
Output Type Transistor
Maximum Output Voltage 20V
Channel Output Current 8mA
Forward Voltage 1.6V
Continuous forward current- Max 25mA
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Case / Package 5-Mini-Flat
Win Source Part Number 1039447-FODM453R1V
Popularity Medium
Supply and Demand Status Balance
Quantity per package 1k pcs
Ultra Librarian 3D Model Ultra Librarian FODM453R1V CAD Model

Description

The FODM453R1V is an obsolete (EOL) optocoupler manufactured by Fairchild/ON Semiconductor.

  • Channel: Single-channel
  • Output Type: Transistor
  • Input Type: DC
  • Isolation Voltage: 3750Vrms
  • Minimum DC Current Transfer Ratio: 20% @ 16mA
  • Maximum DC Current Transfer Ratio: 50% @ 16mA
  • Switching Turn-On Time: 400ns
  • Switching Turn-Off Time: 350ns
  • Continuous Forward Current: 25mA
  • Channel Output Current: 8mA
  • Case/Package: 5-Mini-Flat
  • Forward Voltage: 1.6V
  • Maximum Output Voltage: 20V
  • Suitable For: Isolators
