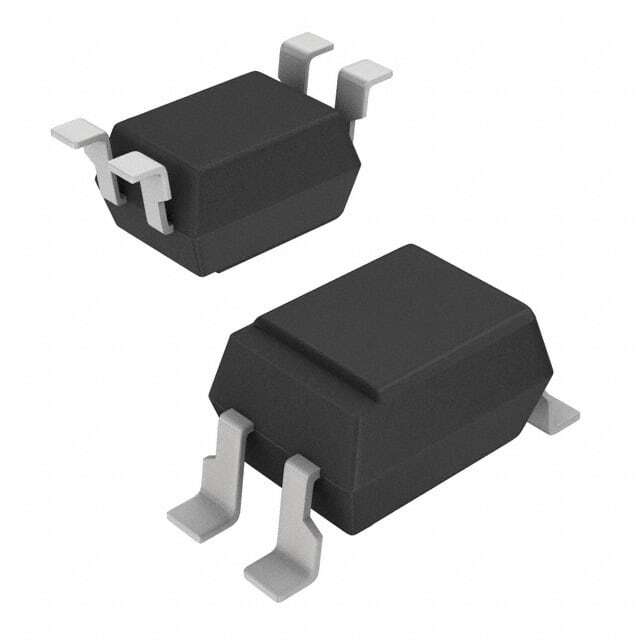

FOD816S
Same model may have multiple batches, images only for reference.

FOD816S

Part No FOD816S
Manufacturer Fairchild/ON Semiconductor
Catalog Optoisolators - Transistor, Photovoltaic Output
Description AC IN-DARLINGTON OUT OPTOCOUPLER / Optoisolator Darlington Output 5000Vrms 1 Channel 4-SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators - Optoisolators - Transistor, Photovoltaic Output Optoisolators
Mfr Fairchild/ON Semiconductor
Package Box
Product Status Obsolete
Number of Channels 1
Voltage - Isolation 5000Vrms
Current Transfer Ratio (Min) 600% @ 1mA
Current Transfer Ratio (Max) 7500% @ 1mA
Rise / Fall Time (Typ) 60µs, 53µs
Input Type AC, DC
Output Type Darlington
Voltage - Output (Max) 35V
Current - Output / Channel 80mA
Voltage - Forward (Vf) (Typ) 1.2V
Current - DC Forward (If) (Max) 50 mA
Vce Saturation (Max) 1V
Temperature Range - Operating -30°C ~ 100°C
Mounting Type Surface Mount
Package / Case 4-SMD, Gull Wing
Supplier Device Package 4-SMD
Standard Package 2,000 pcs
ECCN EAR99
HTSUS 8541.49.8000
Win Source Part Number 872158-FOD816S
Ultra Librarian 3D Model Ultra Librarian FOD816S CAD Model

Description

The FOD816S is a photovoltaic output optoisolator designed for isolating electrical circuits manufactured by Fairchild/ON Semiconductor.

  • Output Type: Darlington
  • Input: AC and DC
  • Maximum DC Forward Current: 50 mA
  • Typical Forward Voltage: 1.2V
  • Rise Time: 60μs
  • Fall Time: 53μs
  • Current Transfer Ratio: 600% @ 1mA
  • Maximum Voltage Isolation: 5000Vrms
  • Mounting Type: Surface Mountable
  • Package: 4-SMD, Gull Wing
  • Product Status: Obsolete
