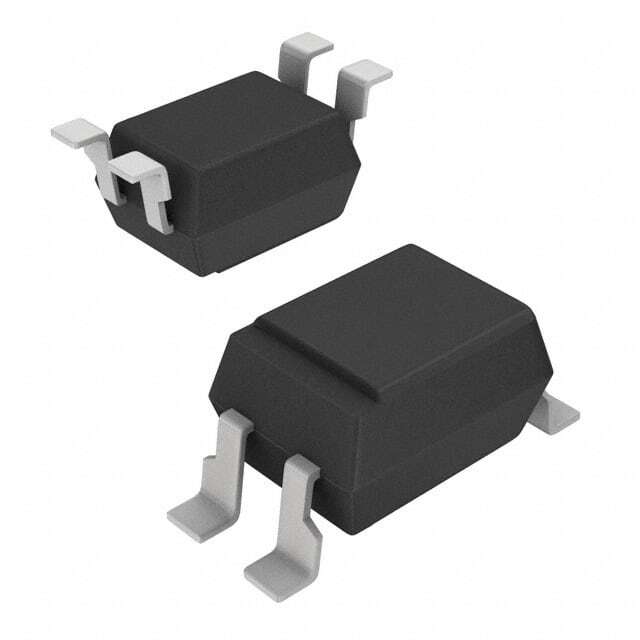

Same model may have multiple batches, images only for reference.
FOD8163SD Fairchild/ON Semiconductor
Same model may have multiple batches, images only for reference.

FOD8163SD

Part No FOD8163SD
Manufacturer Fairchild/ON Semiconductor
Catalog Optoisolators - Logic Output
Description AC IN-DARLINGTON OUT OPTOCOUPLER / Logic Output Optoisolator Darlington 5000Vrms 1 Channel CMTI 4-SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Isolators>Optoisolators - Logic Output
Mfr Fairchild Semiconductor
Package Bulk
Product Status Obsolete
Number of Channels 1
Voltage - Isolation 5000Vrms
Input Type AC, DC
Output Type Darlington
Current - Output / Channel 80 mA
Rise / Fall Time (Typ) 60µs, 53µs
Voltage - Forward (Vf) (Typ) 1.2V
Current - DC Forward (If) (Max) 50mA
Temperature Range - Operating -30°C ~ 100°C
Mounting SMD (SMT)
Package / Case 4-SMD, Gull Wing
Supplier Device Package 4-SMD
ECCN EAR99
HTSUS 8541.49.8000
Other Names 2156-FOD8163SD-FSTR-ND,2156-FOD8163SD,FAIFSCFOD8163SD
Standard Package 1,000
Win Source Part Number 1059564-FOD8163SD
Ultra Librarian 3D Model Ultra Librarian FOD8163SD CAD Model

Description

The Fairchild Semiconductor FOD8163SD is an optoisolator used for logic output.

  • Output Type: Darlington
  • Input Type: AC/DC
  • Package: supplied in a bulk package
  • Standard Package: 1,000
  • Voltage Isolation: 5000Vrms
  • Current Output/Channel: 80 mA
  • Rise/Fall Time (Typ): 60µs, 53µs
  • Operating Temperature Range: -30°C to 100°C
  • ECCN: EAR99
