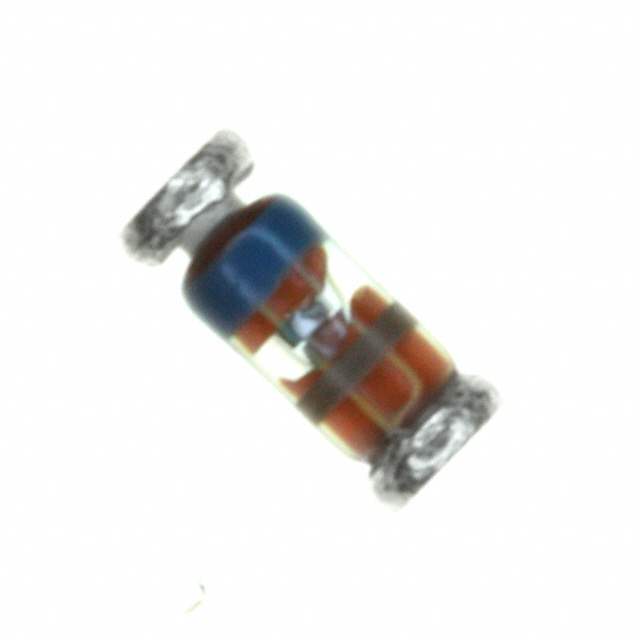

FLZ22VD Real Image
Same model may have multiple batches, images only for reference.

FLZ22VD

Part No FLZ22VD
Manufacturer Fairchild/ON Semiconductor
Catalog Diodes - Zener - Single
Description DIODE ZENER 22.2V 500MW SOD80
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Obsolete(EOL)
Voltage - Zener (Nom) (Vz) 22.2V
Tolerance ±3%
Maximum Power Dissipation 500mW
Impedance (Max) (Zzt) 25.6 Ohm
Current - Reverse Leakage @ Vr 133nA @ 17V
Voltage - Forward (Vf) (Max) @ If 1.2V @ 200mA
Temperature Range - Operating -65°C to 175°C
Mounting SMD (SMT)
Case / Package SOD-80
Win Source Part Number 097827-FLZ22VD
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian FLZ22VD CAD Model

Description

The Fairchild/ON Semiconductor FLZ22VD is a zener diode with a voltage rating of 22.2V and a maximum power dissipation of 500mW.

  • Forward Voltage: 1.2V @ 200mA
  • Reverse Leakage Current: 133nA @ 17V
  • Mounting: SMD (SMT)
  • Tolerance: ±3%
  • Impedance: 25.6 Ohm
  • Package: Reel - TR
  • Temperature Range: -65°C to 175°C
  • Category: Discrete Semiconductor Products
  • Status: Obsolete (EOL)
  • Popularity: Medium
