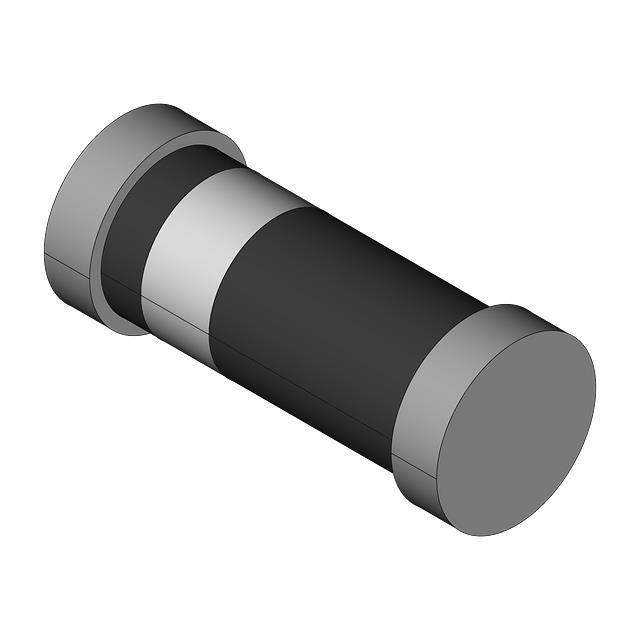

FLZ15VC Real Image
Same model may have multiple batches, images only for reference.

FLZ15VC

Part No FLZ15VC
Manufacturer Fairchild/ON Semiconductor
Catalog Diodes - Zener - Single
Description DIODE ZENER 14.7V 500MW SOD80
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Reel - TR
Status Obsolete(EOL)
Voltage - Zener (Nom) (Vz) 14.7V
Tolerance ±3%
Maximum Power Dissipation 500mW
Impedance (Max) (Zzt) 13.3 Ohm
Current - Reverse Leakage @ Vr 133nA @ 11V
Voltage - Forward (Vf) (Max) @ If 1.2V @ 200mA
Temperature Range - Operating -65°C to 175°C
Mounting SMD (SMT)
Case / Package SOD-80
Win Source Part Number 132911-FLZ15VC
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian FLZ15VC CAD Model

Description

The Fairchild/ON Semiconductor FLZ15VC is a zener diode.

  • Voltage Zener (Vz): 14.7V
  • Power Dissipation: 500mW (Max)
  • Voltage Forward (Vf): 1.2V @ 200mA (Max)
  • Reverse Leakage Current: 133nA @ 11V
  • Package: SOD-80
  • Tolerance: ±3%
  • Category: Discrete Semiconductor Product
  • Status: Obsolete (EOL)
  • Operating Temperature: -65°C to 175°C
