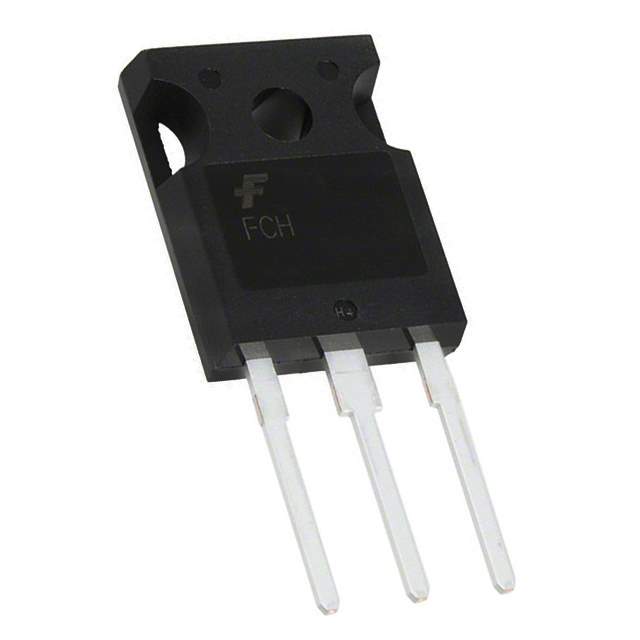

FGY40T120SMD Real Image
Same model may have multiple batches, images only for reference.

FGY40T120SMD

Part No FGY40T120SMD
Manufacturer Fairchild/ON Semiconductor
Catalog IGBTs - Single
Description IGBT 1200V 80A TO-247
Datasheet
FGY40T120SMD Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Tube/Rail
Status Active
IGBT Type Trench Field Stop
VCEO Maximum Collector-Emitter Breakdown Voltage 1200V
Maximum Current Collector 80A
Pulsed Collector Current 160A
Collector-emitter saturation voltage(Max) 2.4V @ 15V, 40A
Maximum Power Dissipation 882W
Total Switching Energy(Ets) 2.7mJ (on), 1.1mJ (off)
Input Type Standard
Gate Charge 370nC
Turn-on and Turn-off delay time 40ns/475ns
Testing Conditions 600V, 40A, 10 Ohm, 15V
Reverse Recovery Time (trr) 65ns
Temperature Range - Operating -55°C to 175°C (TJ)
Mounting Through Hole
Case / Package TO-247
Win Source Part Number 1038703-FGY40T120SMD
Popularity Medium
Supply and Demand Status Balance
Quantity per package 450
Ultra Librarian 3D Model Ultra Librarian FGY40T120SMD CAD Model

Description

The Fairchild/ON Semiconductor FGY40T120SMD is an IGBT type trench field stop that is suitable for through hole mounting.

  • Manufacturer: Fairchild/ON Semiconductor
  • Product Name: FGY40T120SMD
  • Type: IGBT Trench Field Stop
  • Mounting Type: Through Hole
  • Maximum Collector-Emitter Breakdown Voltage: 1200V
  • Maximum Power Dissipation: 882W
  • Supply and Demand: Balanced
  • Quantity per Package: 450 pieces
