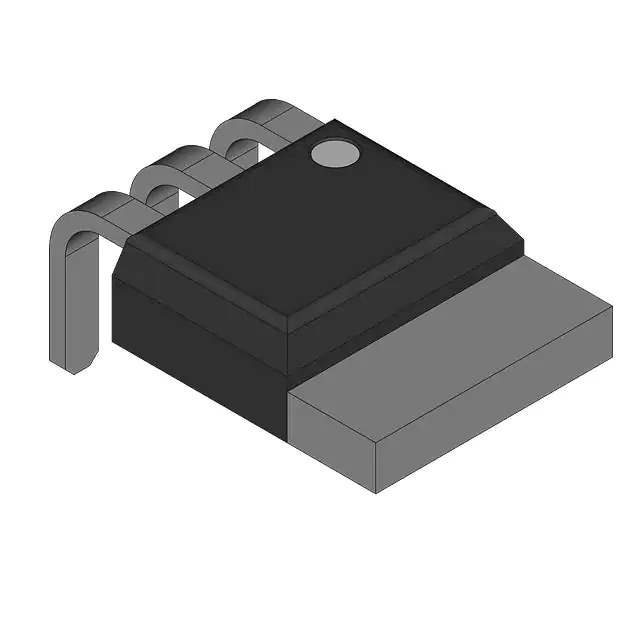

FGI3040G2_F085

Name: FGI3040G2_F085
Brand: Fairchild/ON Semiconductor
SKU: 871765
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	FGI3040G2_F085
Manufacturer	Fairchild/ON Semiconductor
Catalog	IGBTs - Single
Description	IGBT, 41A, 390V, N-CHANNEL
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products - Transistors - IGBTs - Single IGBTs
Mfr	Fairchild/ON Semiconductor
Series	Automotive, AEC-Q101, EcoSPARK®
Package	Bulk
Product Status	Active
Voltage - Collector Emitter Breakdown (Max)	400 V
Current - Collector (Ic) (Max)	41 A
Vce(on) (Max) @ Vge, Ic	1.25V @ 4V, 6A
Power - Max	150 W
Input Type	Logic
Gate Charge	21 nC
Td (on/off) @ 25°C	-/4.8µs
Test Condition	300V, 6.5A, 1kOhm, 5V
Temperature Range - Operating	-55°C ~ 175°C (TJ)
Mounting Type	Through Hole
Package / Case	TO-262-3 Long Leads, I²Pak, TO-262AA
Supplier Device Package	I2PAK (TO-262)
Standard Package	202 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0095
Win Source Part Number	871765-FGI3040G2_F085
Ultra Librarian 3D Model	Ultra Librarian FGI3040G2_F085 CAD Model

Description

The 871765-FGI3040G2_F085 is a single IGBT transistor designed for use in automotive applications.

Series: EcoSPARK®
AEC-Q101 Compliant: Yes
Maximum Power Rating: 150 W
Collector-Emitter Breakdown Voltage: 400 V
Maximum Collector Current: 41 A
Vce(on): 1.25V @ 4V gate-emitter voltage and 6A collector current
Input: Logic-level
Gate Charge: 21 nC
Mounting: Through-hole
Package: TO-262-3 Long Leads, I²Pak, TO-262AA
Operating Temperature: -55°C to 175°C
Manufacturer: Fairchild/ON Semiconductor
Status: Active
