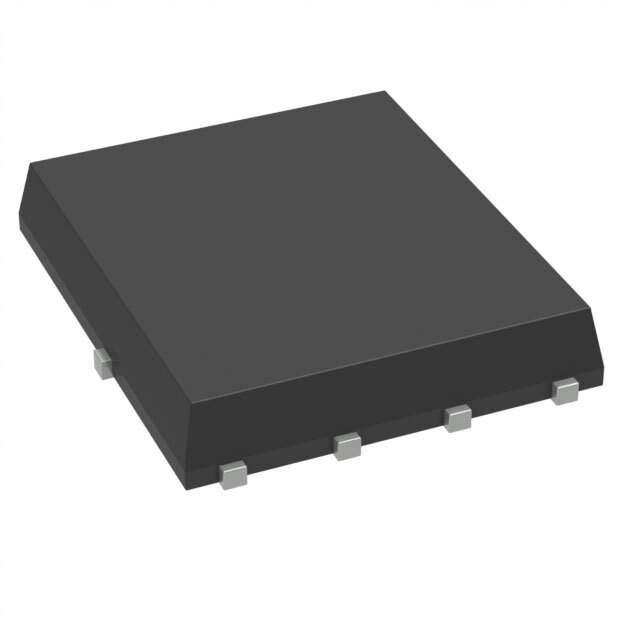

FDMS7698_F065 Real Image
Same model may have multiple batches, images only for reference.

FDMS7698_F065

Part No FDMS7698_F065
Manufacturer Fairchild/ON Semiconductor
Catalog FETs - Single
Description MOSFET N-CH 30V 13.5A PWR56
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products
Family Transistors - FETs, MOSFETs - Single
Manufacturer Fairchild Semiconductor
Series PowerTrench?
Packaging Reel(TR)
FET Type MOSFET N-Channel, Metal Oxide
FET Feature Standard
Drain to Source Voltage (Vdss) 30V
Current - Continuous Drain (Id) @ 25°C 13.5A (Ta), 22A (Tc)
Rds On (Max) @ Id, Vgs 10 mOhm @ 13.5A, 10V
Vgs(th) (Max) @ Id 3V @ 250μA
Gate Charge (Qg) @ Vgs 24nC @ 10V
Input Capacitance (Ciss) @ Vds 1605pF @ 15V
Power - Max 2.5W
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Style SMD/SMT
Package 8-PowerTDFN
Manufacturer Device Package 8-PQFN (5x6), Power56
Win Source Part Number 100258-FDMS7698_F065
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian FDMS7698_F065 CAD Model

Description

The Fairchild Semiconductor MOSFET N-Channel, Metal Oxide transistor is a high-performance component for various electronic devices.

  • Drain to Source Voltage (Vdss): 30V
  • Current - Continuous Drain (Id) @ 25°C: 13.5A (Ta), 22A (Tc)
  • Rds On (Max) @ Id, Vgs: 10 mOhm @ 13.5A, 10V
  • Vgs(th) (Max) @ Id: 3V @ 250μA
  • Input Capacitance (Ciss) @ Vds: 1605pF @ 15V
  • Gate Charge (Qg) @ Vgs: 24nC @ 10V
  • Power - Max: 2.5W
  • Package: 8-PowerTDFN
