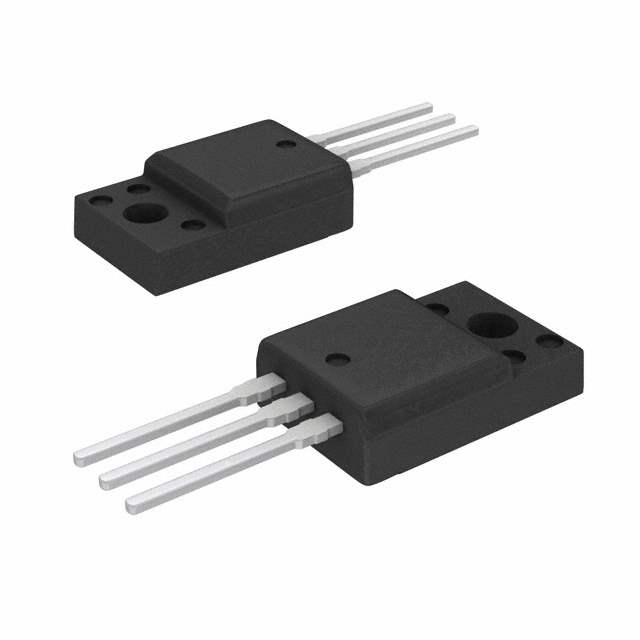

F30UP20DN Real Image
Same model may have multiple batches, images only for reference.

F30UP20DN

Part No F30UP20DN
Manufacturer Fairchild/ON Semiconductor
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY GP 200V 15A TO220F
Datasheet
F30UP20DN Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Fairchild/ON Semiconductor
Packaging Tube/Rail
Status Obsolete(EOL)
Diode Configuration 1 Pair Common Cathode
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 200V
Current - Average Rectified (Io) (per Diode) 15A
Voltage - Forward (Vf) (Max) @ If 1.15V @ 15A
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 45ns
Current - Reverse Leakage @ Vr 100μA @ 200V
Operating Temperature - Junction -65°C to 150°C
Mounting Through Hole
Case / Package TO-220F
Win Source Part Number 066701-F30UP20DN
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian F30UP20DN CAD Model

Description

F30UP20DN

The F30UP20DN device is a high-voltage power MOSFET ideal for high-efficiency switching amplifiers and power conversion in industrial settings.

  • Applications:
    • Switching Power Supplies
    • Audio Amplifiers
    • Uninterruptible Power Supplies (UPS)
    • High-Voltage DC/DC Converters
  • Features and Benefits:
    • High energy efficiency with reduced conduction losses
    • Fast switching speed to improve performance
    • Robust design for durability in harsh environments
    • Temperature tolerance enhancing safety and reliability
  • Additional Details:
    • Operating Temperature Range: -55°C to +150°C
    • Package Type: TO-220
    • VDSS: 600V
