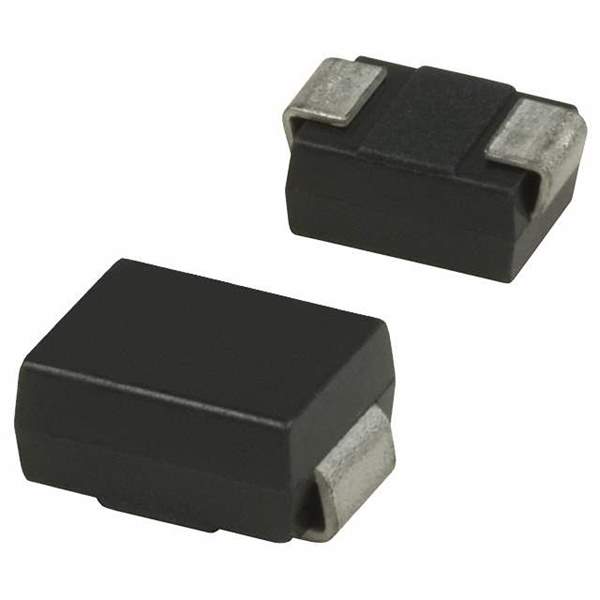

ES2D Real Image

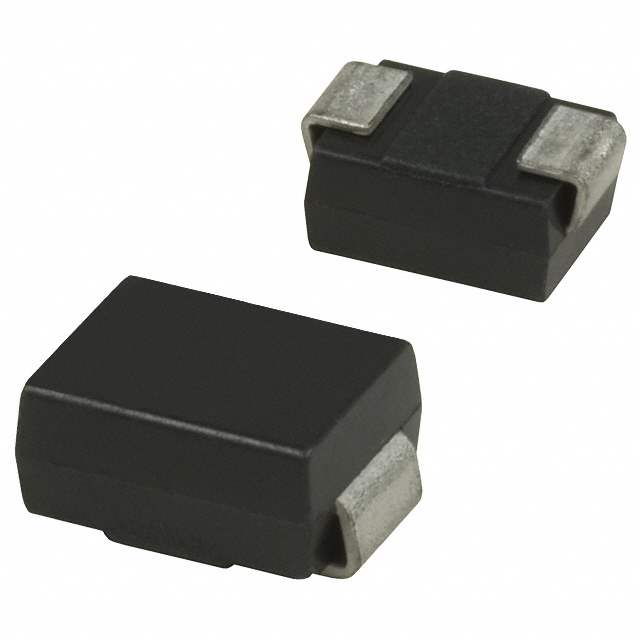

Same model may have multiple batches, images only for reference.

ES2D

Part No ES2D
Manufacturer Fairchild/ON Semiconductor
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 200V 2A DO214AA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Fairchild Semiconductor
Standard Package 1
Category Discrete Semiconductor Products
Family Diodes Rectifiers - Single
Packaging Reel
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 200V
Current - Average Rectified (Io) 2A
Voltage - Forward (Vf) (Max) @ If 900mV @ 2A
Speed Fast Recovery =< 500ns > 200mA (Io)
Reverse Recovery Time (trr) 20ns
Current - Reverse Leakage @ Vr 10µA @ 200V
Capacitance @ Vr F 18pF @ 4V 1MHz
Mounting Style SMD/SMT
Package DO-214AA SMB
Manufacturer Device Package DO-214AA (SMB)
Operating Temperature - Junction -50°C ~ 150°C
Catalog Standard Diode
Win Source Part Number 093778-ES2D
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Application Field Used in Power Management
Package Tape & Reel (TR);Cut Tape (CT)
Product Status Active
Technology Standard
Speed Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 5µA @ 200V
Grade -
Mounting Type Surface Mount
Package / Case DO-214AA, SMB
Supplier Device Package DO-214AA (SMB)
Ultra Librarian 3D Model Ultra Librarian ES2D CAD Model

Description

Overview

The ES2D is a high-efficiency, ultra-fast rectifier diode designed for a wide range of electronic applications. This device is known for its impressive switching speed and low reverse recovery time, making it ideal for applications requiring high frequency and high efficiency.

Applications

  • Switching Power Supplies
  • Inverters
  • DC-DC Converters
  • Freewheeling Diodes

Features & Benefits

  • Fast recovery time significantly improves system performance
  • Low forward voltage drop reduces power loss, enhancing efficiency
  • High surge current capability for managing spikes in power demand
  • Compact, space-saving package facilitates high-density board designs

Additional Details

The ES2D diode offers a voltage rating up to 200V and a current capability of 2A, optimizing it for medium power applications.
