Same model may have multiple batches, images only for reference.

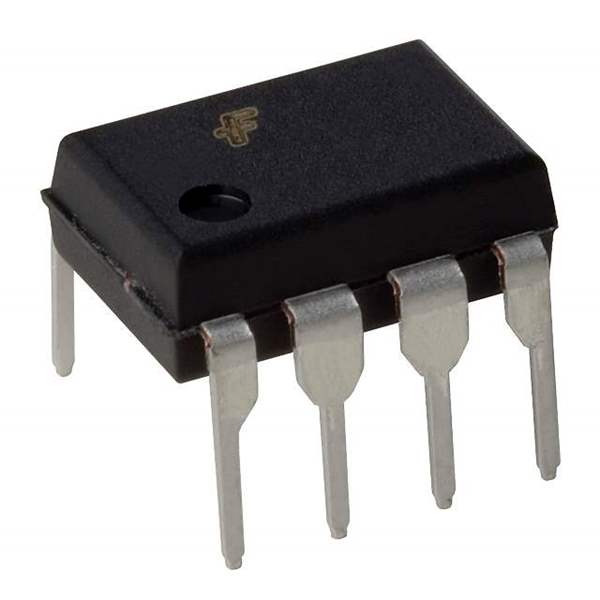

6N137VM Real Image
Same model may have multiple batches, images only for reference.

6N137VM

Part No 6N137VM
Manufacturer Fairchild/ON Semiconductor
Catalog Optoisolators - Logic Output
Description OPTOISO 5KV 1CH OPEN COLL 8DIP
Datasheet
6N137VM Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Fairchild/ON Semiconductor
Packaging Tube
Number of Channels 1
Inputs - Side 1/Side 2 1/0
Voltage - Isolation 5000Vrms
Common Mode Transient Immunity (Minimum) 10kV/μs (Typ)
Input Type DC
Output Type Open Collector
Output Current per Channel 50mA
Data Rate 10Mbps
Propagation Delay tpLH / tpHL (Maximum) 75ns, 75ns
Rise / Fall Time (Typ) 30ns, 10ns
Voltage - Forward (Vf) (Typ) 1.45V
Current - DC Forward (If) (Maximum) 50mA
Operating Supply Voltage 4.5 V ~ 5.5 V
Operating Temperature Range -40°C ~ 100°C
Mounting Style Through Hole
Package 8-DIP (0.300", 7.62mm)
Manufacturer Package 8-DIP
Win Source Part Number 764590-6N137VM
Popularity Medium
Supply and Demand Status Limited
Quantity per package 1k pcs
Family Name 6N137VM
ECCN EAR99
Country of Origin Thailand
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian 6N137VM CAD Model

Description

The 6N137VM is an optocoupler IC manufactured by Fairchild/ON Semiconductor.

  • Data Rate: 10Mbps
  • Operating Voltage Range: 4.5V to 5.5V
  • Output Type: Open Collector
  • Voltage Isolation: 5000Vrms
  • Package: 8-DIP
