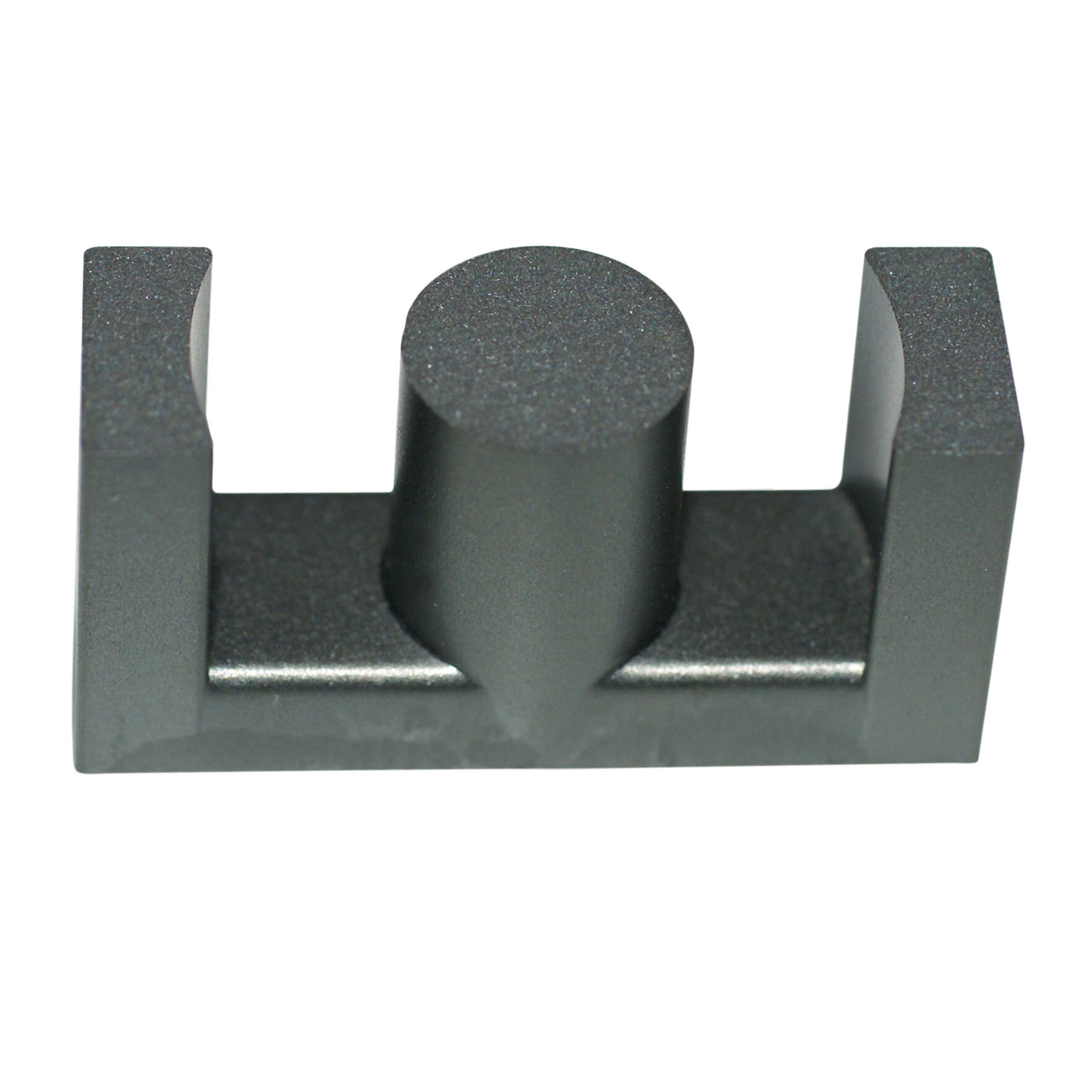

Same model may have multiple batches, images only for reference.
9578404602 FAIR-RITE PRODUCTS – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

9578404602

Part No 9578404602
Manufacturer FAIR-RITE PRODUCTS
Catalog Ferrite Cores
Description FERRITE CORE EER 78 SET
Datasheet
9578404602 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Core Type EER
Material 78
Tolerance ±25%
Gap Ungapped
Initial Permeability (µi) 2300
Core Factor (ΣI/A) mm⁻¹ 69.0
Effective Length (le) mm 100.0
Effective Area (Ae) mm2 144.0
Minimum Core Cross Section (Amin) mm2 130.0
Effective Magnetic Volume (Ve) mm3 14420.0
Finish Uncoated
Length 1.575" (40.00mm)
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1528164-9578404602
Ultra Librarian 3D Model Ultra Librarian 9578404602 CAD Model
