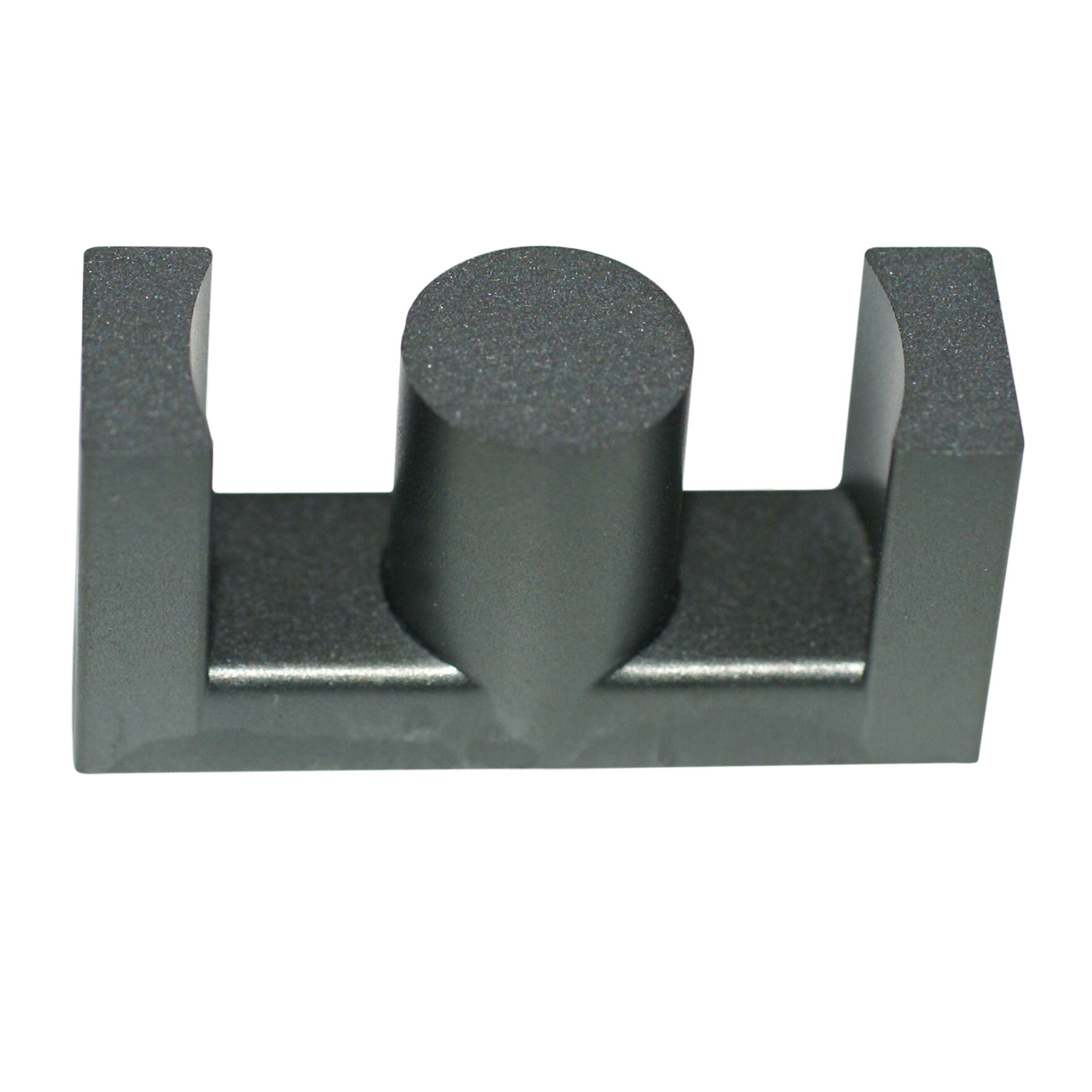

Same model may have multiple batches, images only for reference.
9578100502 FAIR-RITE PRODUCTS – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

9578100502

Part No 9578100502
Manufacturer FAIR-RITE PRODUCTS
Catalog Ferrite Cores
Description FERRITE CORE E 78 SET
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Core Type E
Material 78
Tolerance ±25%
Gap Ungapped
Initial Permeability (µi) 2300
Core Factor (ΣI/A) mm⁻¹ 152.0
Effective Length (le) mm 13.6
Effective Area (Ae) mm2 8.93
Minimum Core Cross Section (Amin) mm2 7.6
Effective Magnetic Volume (Ve) mm3 122.0
Finish Uncoated
Length 0.368" (9.35mm)
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1528159-9578100502
Ultra Librarian 3D Model Ultra Librarian 9578100502 CAD Model
