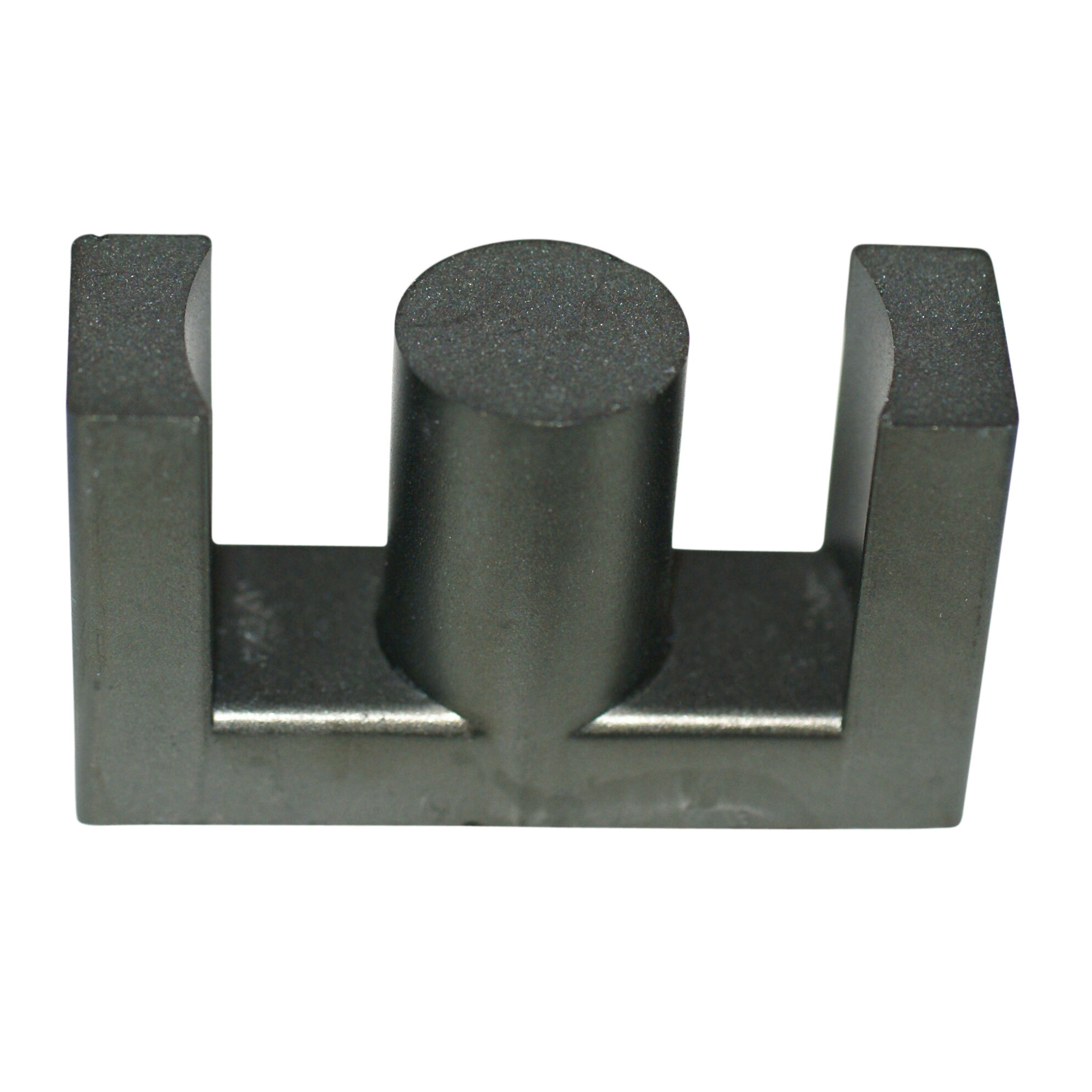

Same model may have multiple batches, images only for reference.
9495103002 FAIR-RITE PRODUCTS – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

9495103002

Part No 9495103002
Manufacturer FAIR-RITE PRODUCTS
Catalog Ferrite Cores
Description FERRITE CORE E 95 SET
Datasheet
9495103002 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Core Type E
Material 95
Tolerance ±25%
Gap Ungapped
Initial Permeability (µi) 3000
Core Factor (ΣI/A) mm⁻¹ 181.0
Effective Length (le) mm 39.9
Effective Area (Ae) mm2 22.0
Minimum Core Cross Section (Amin) mm2 21.6
Effective Magnetic Volume (Ve) mm3 878.0
Finish Uncoated
Height 0.315" (8.00mm)
Length 0.748" (19.00mm)
Width 0.189\
Package Bulk
Supply and Demand Status Limited
Win Source Part Number 1528149-9495103002
Ultra Librarian 3D Model Ultra Librarian 9495103002 CAD Model
