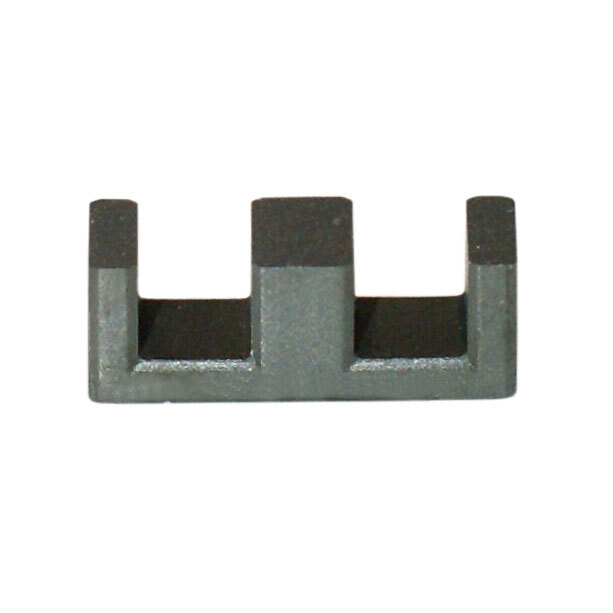

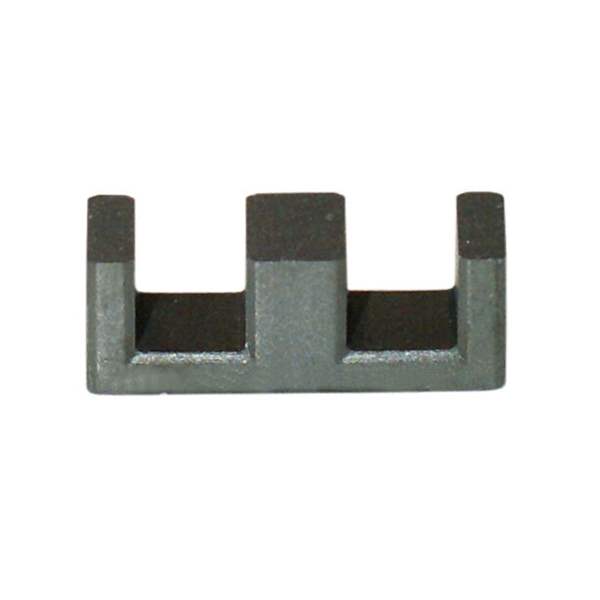

7878400121 FAIR-RITE PRODUCTS – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

7878400121

Part No 7878400121
Manufacturer FAIR-RITE PRODUCTS
Catalog Ferrite Cores
Description FERRITE CORE E 78 SET
Datasheet
7878400121 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Core Type E
Material 78
Tolerance ±25%
Gap Ungapped
Initial Permeability (µi) 2300
Core Factor (ΣI/A) mm⁻¹ 109.0
Effective Length (le) mm 16.6
Effective Area (Ae) mm2 15.2
Minimum Core Cross Section (Amin) mm2 15.0
Effective Magnetic Volume (Ve) mm3 252.0
Finish Uncoated
Length 0.551" (14.00mm)
Width 0.197\
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1528125-7878400121
Ultra Librarian 3D Model Ultra Librarian 7878400121 CAD Model
