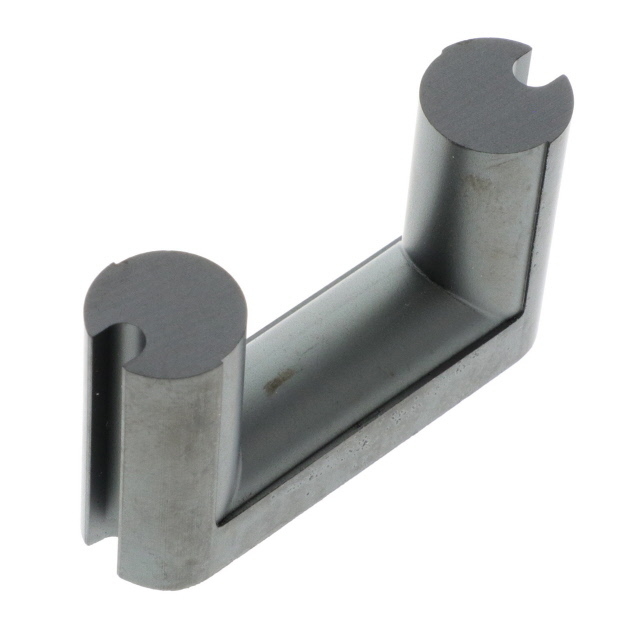

Same model may have multiple batches, images only for reference.
6698272021 FAIR-RITE PRODUCTS – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

6698272021

Part No 6698272021
Manufacturer FAIR-RITE PRODUCTS
Catalog Ferrite Cores
Description FERRITE CORE PQ SET
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Core Type PQ
Tolerance ±25%
Gap Ungapped
Initial Permeability (µi) 2400
Core Factor (ΣI/A) mm⁻¹ 37.2
Effective Length (le) mm 44.8
Effective Area (Ae) mm2 120.3
Minimum Core Cross Section (Amin) mm2 113.1
Effective Magnetic Volume (Ve) mm3 5385.0
Finish Uncoated
Width 0.748\
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1528121-6698272021
Ultra Librarian 3D Model Ultra Librarian 6698272021 CAD Model

Description
