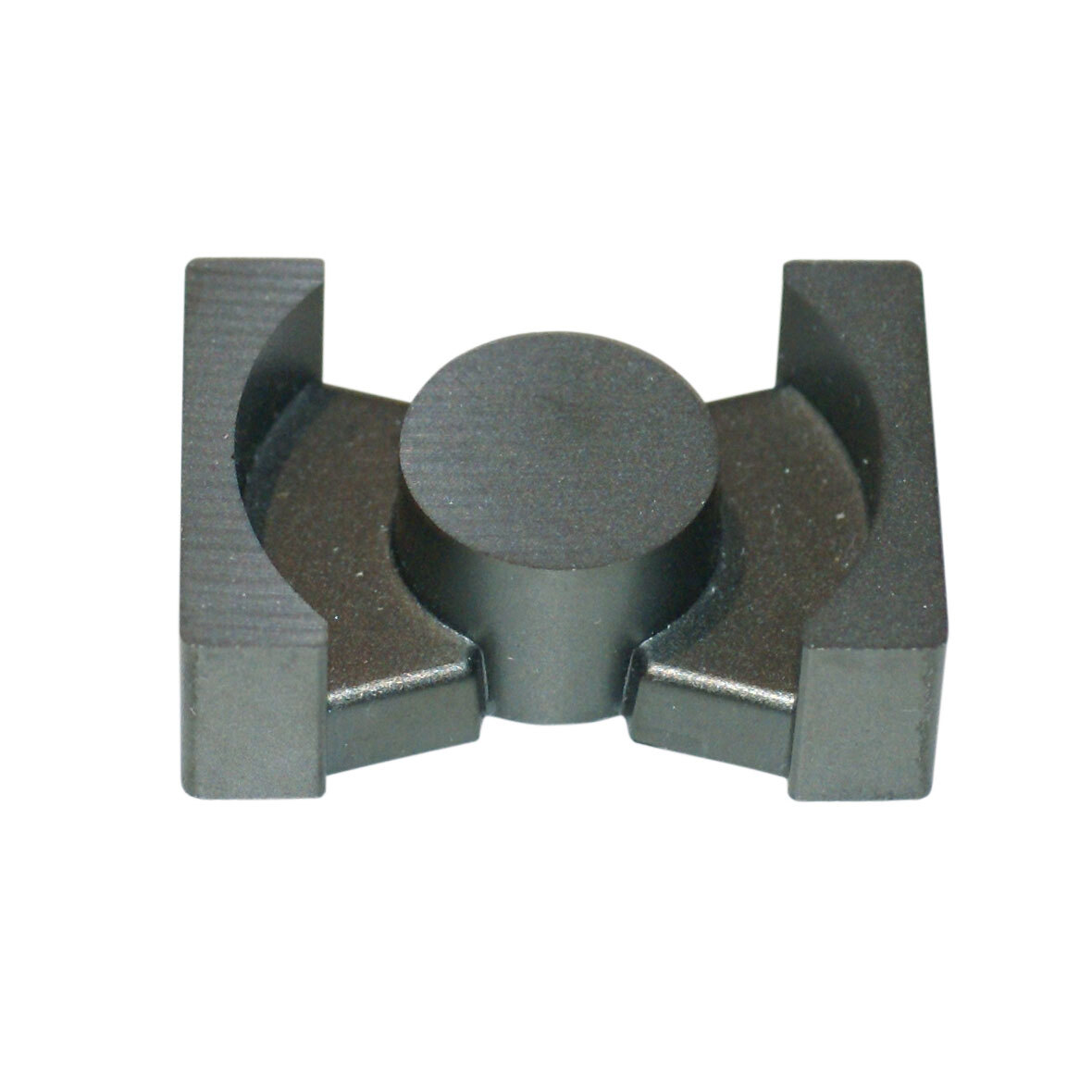

Same model may have multiple batches, images only for reference.
6578130121 FAIR-RITE PRODUCTS – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

6578130121

Part No 6578130121
Manufacturer FAIR-RITE PRODUCTS
Catalog Ferrite Cores
Description FERRITE CORE EP 78 SET
Datasheet
6578130121 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Core Type EP
Material 78
Tolerance ±25%
Gap Ungapped
Initial Permeability (µi) 2300
Core Factor (ΣI/A) mm⁻¹ 118.0
Effective Length (le) mm 23.2
Effective Area (Ae) mm2 19.7
Minimum Core Cross Section (Amin) mm2 14.8
Effective Magnetic Volume (Ve) mm3 457.0
Finish Uncoated
Height 0.256" (6.50mm)
Length 0.492" (12.50mm)
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1528110-6578130121
Ultra Librarian 3D Model Ultra Librarian 6578130121 CAD Model
