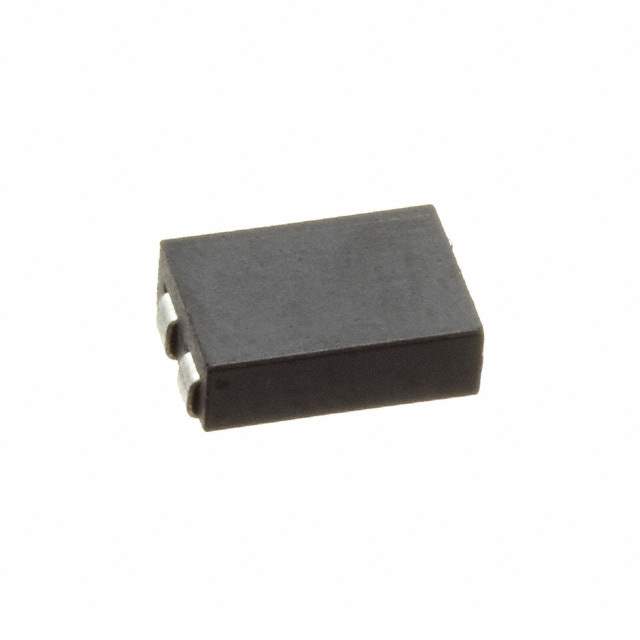

2744045447 Real Image
Same model may have multiple batches, images only for reference.

2744045447

Part No 2744045447
Manufacturer FAIR-RITE PRODUCTS
Catalog Common Mode Chokes
Description 44 COMMON MODE SM BEAD | CMC 5A 2LN 60 OHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Fair-Rite Products Corp.
Packaging Reel
Filter Type Signal Line
Number of Lines 2
Impedance at Frequency 60 Ohms at 100MHz
Current Rating (Maximum) 5A
DC Resistance (DCR) (Maximum) 1.4mOhm
Temperature Range - Operating -55°C ~ 125°C
Mounting Style SMD
Parts Dimension 0.220" L x 0.350" W (5.60mm x 8.90mm)
Height (Maximum) 0.120" (3.05mm)
Manufacturer Package Horizontal, 4 PC Pad
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1123439-2744045447
Manufacturer Homepage www.fair-rite.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 2744045447 CAD Model

Description

This electronic component is a filter manufactured by Fair-Rite Products Corp. and identified by the Win Source Part Number: 1123439-2744045447.

  • Height (Maximum): 0.120" (3.05mm)
  • Current Rating (Maximum): 5A
  • Impedance: 60 Ohms @ 100MHz
