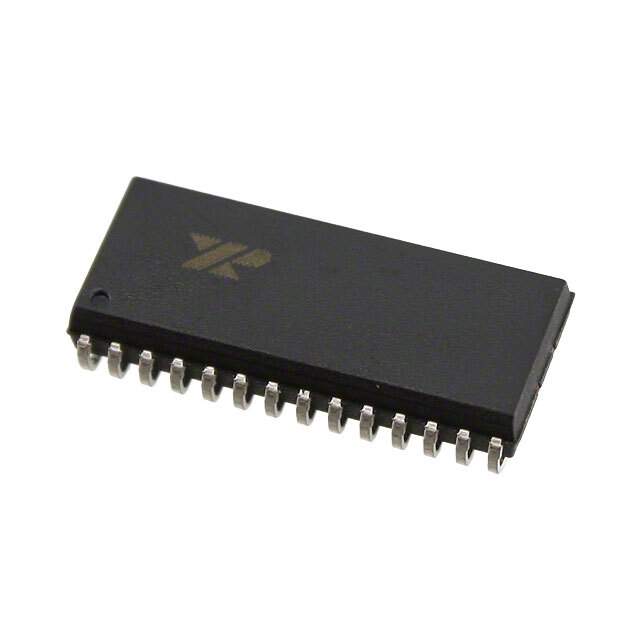

The XRT7296IW-F is a T1/E1/J1 framer and line interface unit (LIU). It provides the necessary functions to transmit and receive data over T1, E1, and J1 communication lines. It is designed for applications in telecommunications equipment, networking devices, and voice over IP (VoIP) systems.

Applications:

• T1/E1/J1 Line Cards
• Voice over IP (VoIP) Gateways
• Digital Cross-Connect Systems (DCS)
• Private Branch Exchanges (PBX)
• Channel Banks

Features:

• Integrated T1/E1/J1 Framer and LIU
• Software Selectable T1/E1/J1 Operation
• Clock Recovery and Generation
• Jitter Attenuation
• Line Build-Out (LBO) Selection
• Alarm and Performance Monitoring
• Serial Microprocessor Interface

Benefits:

• Simplified Design: Integrated framer and LIU reduces component count and board space.
• Flexible Operation: Software selectable T1/E1/J1 operation allows for a single device to support multiple standards.
• High Performance: Clock recovery, jitter attenuation, and LBO selection ensure reliable communication.
• Comprehensive Monitoring: Alarm and performance monitoring features provide valuable diagnostic information.
• Easy Integration: Serial microprocessor interface simplifies control and configuration.

Additional Details:

The XRT7296IW-F integrates all the necessary functions for T1/E1/J1 line interfacing, including clock recovery, jitter attenuation, framing, and line build-out. The device can be configured through a serial microprocessor interface to operate in either T1, E1, or J1 mode. The clock recovery circuit extracts the clock signal from the received data stream, while the jitter attenuator reduces jitter on the recovered clock. The framer performs framing and deframing of the data, and the LIU provides the physical interface to the T1/E1/J1 line. The LBO selection allows the device to compensate for different cable lengths. The XRT7296IW-F also provides alarm and performance monitoring features, allowing the system to detect and diagnose errors.

This device is a critical component in telecommunications equipment, ensuring reliable and efficient data transmission over T1/E1/J1 lines.
