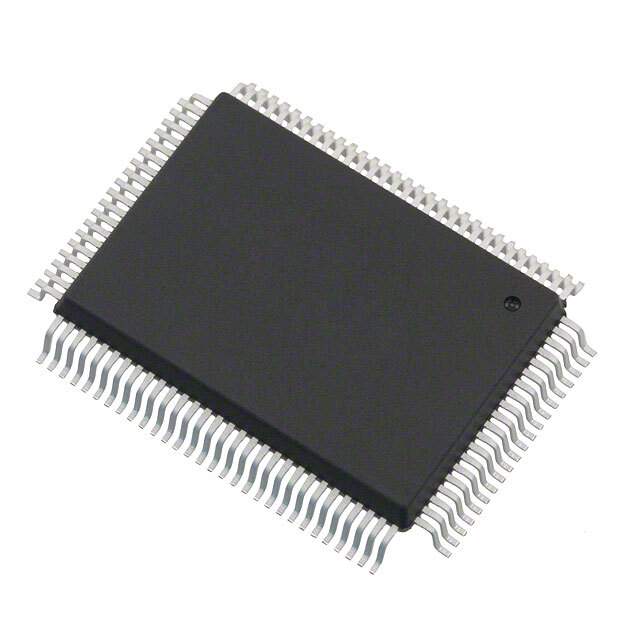

XR16V654IQ-F Real Image
Same model may have multiple batches, images only for reference.

XR16V654IQ-F

Part No XR16V654IQ-F
Manufacturer Exar Corporation
Catalog Interface - UARTs (Universal Asynchronous Receiver Transmitter)
Description IC UART FIFO 64B QUAD 100QFP
Datasheet
XR16V654IQ-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Exar Corporation
Packaging Tray
Status Obsolete(EOL)
Features Internal Oscillator, Timer/Counter
Number of Channels 4, QUART
FIFO's 64 Byte
Protocol RS232
Data Rate (Max) 16Mbps
Supply Voltage - Operating 2.25 V to 3.6 V
With Auto Flow Control Yes
With IrDA Encoder/Decoder Yes
With False Start Bit Detection Yes
With Modem Control Yes
Mounting SMD (SMT)
Case / Package 100-QFP (14x20)
Win Source Part Number 214611-XR16V654IQ-F
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian XR16V654IQ-F CAD Model

Description

The XR16V654IQ-F is an integrated circuit designed for RS232 protocol applications.

  • Status: Obsolete (EOL)
  • Manufacturer: Exar Corporation
  • Operating Temperature: 2.25V to 3.6V
  • Features: Internal oscillator, timer/counter
  • Channels: Four
  • Data Rate: 16Mbps
  • FIFOs: 64-byte
  • Additional Features: Auto flow control, IrDA encoder/decoder, modem control, and false start bit detection
