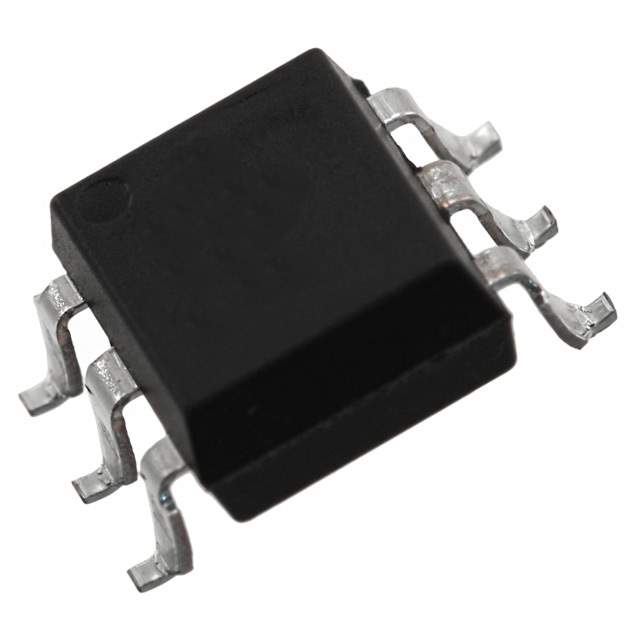

TIL113S1(TB)-V Real Image
Same model may have multiple batches, images only for reference.

TIL113S1(TB)-V

Part No TIL113S1(TB)-V
Manufacturer Everlight Electronics Co Ltd
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISO 5KV DARL W/BASE 6SMD / Optocoupler DC-IN 1-CH Darlington With Base DC-OUT 6-Pin DIP SMD T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Everlight Electronics Co Ltd
Packaging Reel package
Number of Channels 1
Voltage - Isolation 5000Vrms
Current Transfer Ratio (Minimum) 300% @ 10mA
Turn On / Turn Off Time (Typ) 5μs, 100μs (Maximum)
Input Type DC
Output Type Darlington with Base
Output Voltage MAX 55V
Voltage - Forward (Vf) (Typ) 1.2V
Current - DC Forward (If) (Maximum) 60mA
Vce Saturation (Maximum) 1.2V
Operating Temperature Range -55°C ~ 100°C
Mounting SMD
Package 6-SMD, Gull Wing
Manufacturer Package 6-SMD
Win Source Part Number 796778-TIL113S1(TB)-V
Popularity Medium
Supply and Demand Status Limited
Family Name TIL113
Introduction Date February 11, 2009
ECCN EAR99
Country of Origin Taiwan
Estimated EOL Date 2025
Ultra Librarian 3D Model Ultra Librarian TIL113S1(TB)-V CAD Model

Description

The TIL113 optocoupler from Everlight Electronics is a single channel Darlington device with a base output type.

  • Input Type: DC
  • Voltage Forward: 1.2V
  • Minimum Current Transfer Ratio: 300% @ 10mA
  • Operating Temperature Range: -55°C to 100°C
  • Maximum Vce Saturation: 1.2V
  • Maximum Output Voltage: 55V
  • Isolation Voltage: 5000Vrms
  • Package: 6-SMD, Gull Wing
