Same model may have multiple batches, images only for reference.

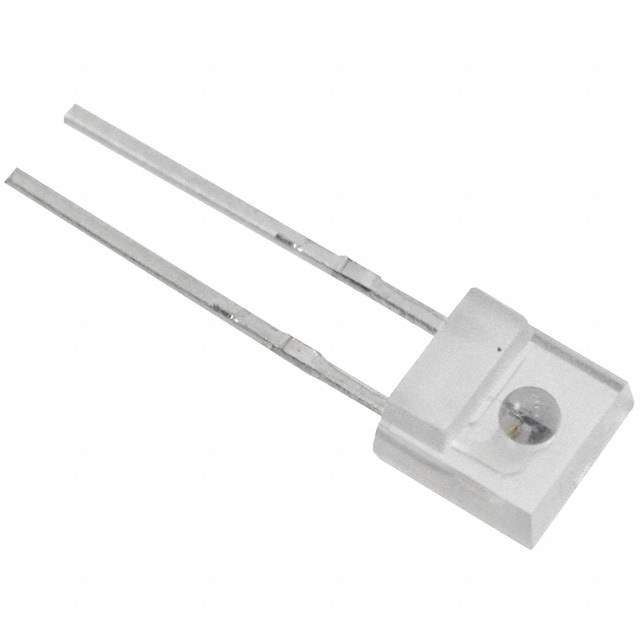

PT928-6C-F Real Image
Same model may have multiple batches, images only for reference.

PT928-6C-F

Part No PT928-6C-F
Manufacturer Everlight Electronics Co Ltd
Catalog Optical Sensors - Phototransistors
Description PHOTOTRANS 1.5MM SIDE CLEAR RAD
Datasheet
PT928-6C-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Everlight Electronics Co Ltd
Packaging Bulk
Status Active
VCEO Maximum Collector-Emitter Breakdown Voltage 30V
Maximum Current Collector 40mA
Current - Dark (Id) (Max) 100nA
Wavelength 940nm
Mounting Through Hole, Right Angle
Orientation Side View
Temperature Range - Operating -25°C to 85°C (TA)
Dimension Radial, Side View
Win Source Part Number 1090560-PT928-6C-F
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PT928-6C-F CAD Model

Description

The Everlight Electronics Co Ltd PT928-6C-F is a through-hole, right-angle mounted sensor with a radial, side view dimension.

  • Manufacturer: Everlight Electronics Co Ltd
  • Part Number: PT928-6C-F
  • Mounting: through-hole, right-angle
  • Dimension: radial, side view
  • Maximum Current Collector: 40mA
  • VCEO Maximum Collector-Emitter Breakdown Voltage: 30V
  • Minimum DC Current Transfer Ratio @ 10mA: 100%
  • Switching Turn-On Time: 25μs
  • Switching Turn-Off Time: 18μs
  • Maximum Output Voltage: 55V
  • Continuous Forward Current-Max: 60mA
  • Application: sensors and transducers
  • Popularity: medium
  • Supply and Demand: balanced
