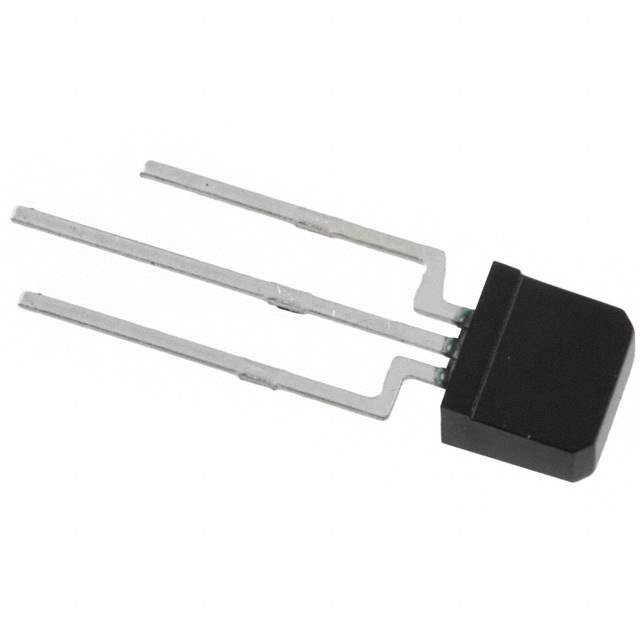

PT5529B/L2/H2-F Real Image
Same model may have multiple batches, images only for reference.

PT5529B/L2/H2-F

Part No PT5529B/L2/H2-F
Manufacturer Everlight Electronics Co Ltd
Catalog Optical Sensors - Phototransistors
Description PHOTOTRANSISTOR SIDE BLACK RAD
Datasheet
PT5529B/L2/H2-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Everlight Electronics Co Ltd
Packaging Bulk
Status Active
VCEO Maximum Collector-Emitter Breakdown Voltage 30V
Maximum Current Collector 20mA
Current - Dark (Id) (Max) 100nA
Wavelength 940nm
Mounting Through Hole
Orientation Side View
Temperature Range - Operating -40°C to 85°C (TA)
Dimension Radial - 3 Leads
Win Source Part Number 123120-PT5529B/L2/H2-F
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Clock & Timing
Ultra Librarian 3D Model Ultra Librarian PT5529B/L2/H2-F CAD Model

Description

The Everlight Electronics Co Ltd 290260 is a through-hole mounted side view sensor with a peak wavelength of 940nm.

  • Peak Wavelength: 940nm
  • Maximum Collector-Emitter Breakdown Voltage: 30V
  • Maximum Current Collector: 20mA
  • Operating Temperature Range: between -40°C to 85°C
  • Dark Current: 100nA
