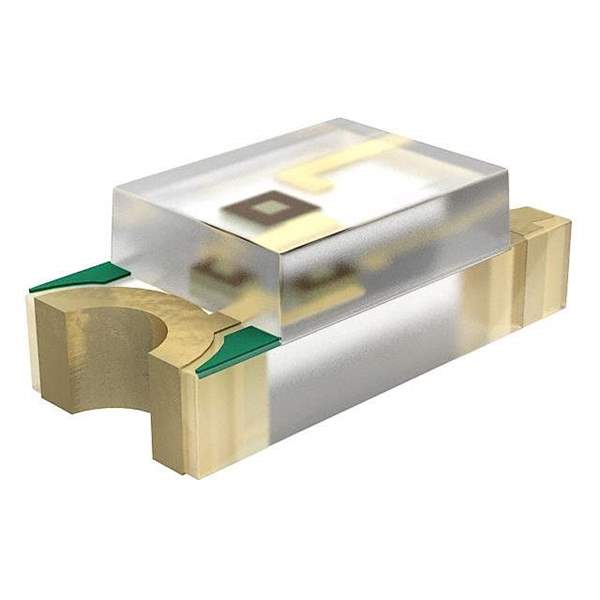

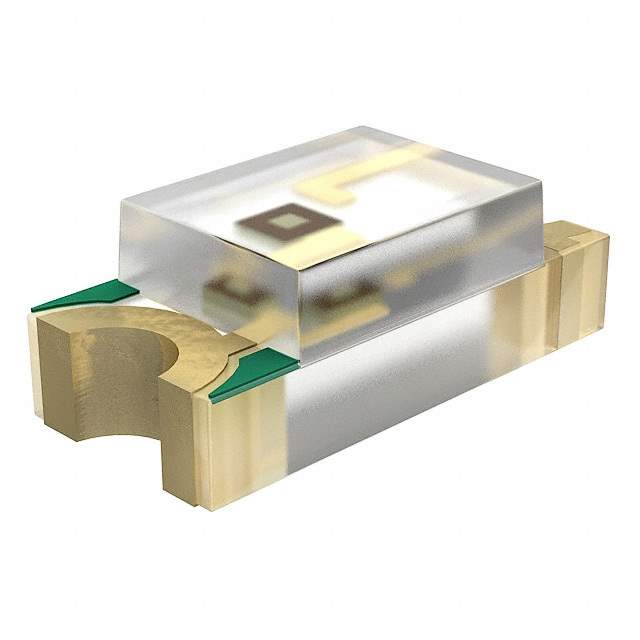

PT15-21C/TR8 Real Image
Same model may have multiple batches, images only for reference.

PT15-21C/TR8

Part No PT15-21C/TR8
Manufacturer Everlight Electronics Co Ltd
Catalog Optical Sensors - Phototransistors
Description PHOTOTRANSISTOR FLAT CLEAR 1206
Datasheet
PT15-21C/TR8 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Everlight Electronics Co Ltd
Packaging Reel - TR
Status Active
VCEO Maximum Collector-Emitter Breakdown Voltage 30V
Maximum Current Collector 20mA
Current - Dark (Id) (Max) 100nA
Wavelength 940nm
Maximum Power Dissipation 75mW
Mounting SMD (SMT)
Orientation Top View
Temperature Range - Operating -25°C to 85°C (TA)
Dimension 1206 (3216 Metric)
Win Source Part Number 1090473-PT15-21C/TR8
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PT15-21C/TR8 CAD Model

Description

The PT15-21C/TR8 is a sensor product from Everlight Electronics Co Ltd.

  • Packaging: Reel - TR
  • Orientation: Top View
  • Mounting: Surface Mount
  • Dimension: 1206 (3216 Metric)
  • Maximum Current Collector: 20mA
  • VCEO: 30V
  • Maximum Power Dissipation: 75mW
  • Supply and Demand Status: Balanced
  • Temperature Range: -25°C to 85°C (TA)
  • Category: Sensors, Transducers
