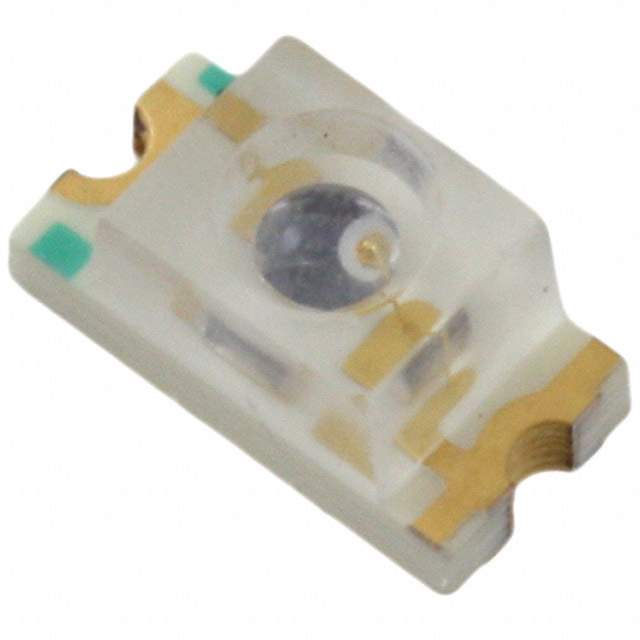

Same model may have multiple batches, images only for reference.

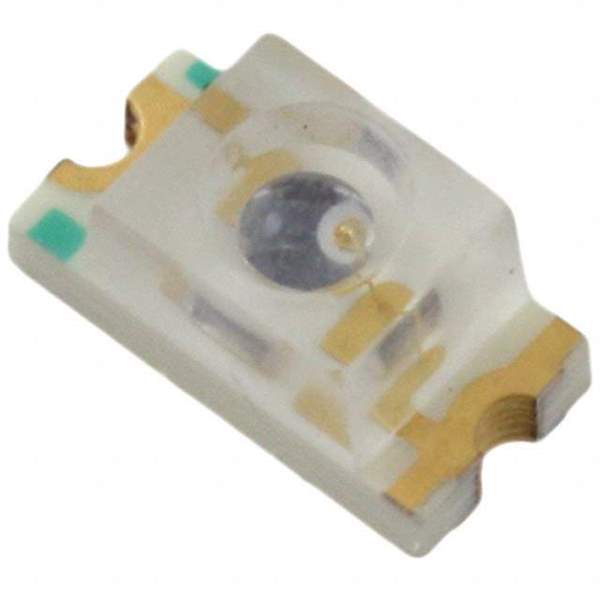

PT11-21C/L41/TR8 Real Image
Same model may have multiple batches, images only for reference.

PT11-21C/L41/TR8

Part No PT11-21C/L41/TR8
Manufacturer Everlight Electronics Co Ltd
Catalog Optical Sensors - Phototransistors
Description PHOTOTRANSISTOR CLEAR MINI 1206
Datasheet
PT11-21C/L41/TR8 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Everlight Electronics Co Ltd
Packaging Reel - TR
Status Active
VCEO Maximum Collector-Emitter Breakdown Voltage 30V
Maximum Current Collector 20mA
Current - Dark (Id) (Max) 100nA
Wavelength 940nm
Maximum Power Dissipation 75mW
Mounting SMD (SMT)
Orientation Top View
Temperature Range - Operating -25°C to 85°C (TA)
Dimension 1206 (3016 Metric)
Win Source Part Number 1090470-PT11-21C/L41/TR8
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian PT11-21C/L41/TR8 CAD Model

Description

Everlight Electronics Co Ltd manufactures the PT11-21C/L41/TR8, which is a sensor/transducer component.

  • Supply and Demand Status: Balanced
  • Manufacturer Homepage: www.everlight.com
  • Dimension: 1206 (3016 Metric)
  • Maximum Current Collector: 20mA
  • VCEO Maximum Collector-Emitter Breakdown Voltage: 30V
  • Maximum Power Dissipation: 75mW
  • Temperature Range: -25°C to 85°C (TA)
