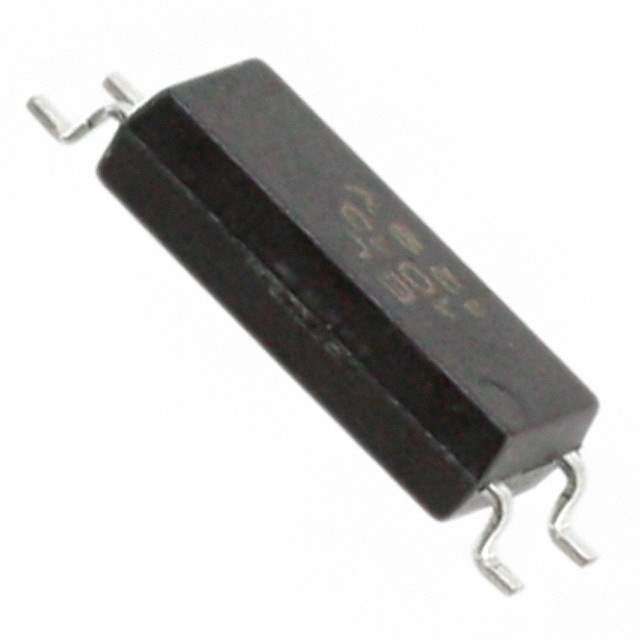

EL852(S)(TU)(D)-V Real Image
Same model may have multiple batches, images only for reference.

EL852(S)(TU)(D)-V

Part No EL852(S)(TU)(D)-V
Manufacturer Everlight Electronics Co Ltd
Catalog Optoisolators - Transistor, Photovoltaic Output
Description OPTOISO 5KV DARLINGTON 4-SMD
Datasheet
EL852(S)(TU)(D)-V Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Isolators
Manufacturer Everlight Electronics Co Ltd
Packaging Reel package
Number of Channels 1
Voltage - Isolation 5000Vrms
Current Transfer Ratio (Minimum) 1000% @ 1mA
Current Transfer Ratio (Maximum) 15000% @ 1mA
Rise / Fall Time (Typ) 300μs, 100μs (Maximum)
Input Type DC
Output Type Darlington
Output Voltage MAX 350V
Output Current per Channel 150mA
Voltage - Forward (Vf) (Typ) 1.2V
Current - DC Forward (If) (Maximum) 60mA
Vce Saturation (Maximum) 1.2V
Operating Temperature Range -55°C ~ 100°C
Mounting SMD
Package 4-SMD, Gull Wing
Manufacturer Package 4-SMD
Win Source Part Number 773760-EL852(S)(TU)(D)-V
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian EL852(S)(TU)(D)-V CAD Model

Description

The EL852 optocoupler from Everlight Electronics is a single channel Darlington output type device.

  • Input Type: DC
  • Voltage Forward: 1.2V
  • Current Transfer Ratio (Minimum): 1000% @ 1mA
  • Current Transfer Ratio (Maximum): 15000% @ 1mA
  • Vce saturation (Maximum): 1.2V
  • Operating Temperature Range: -55°C to 100°C
  • Maximum Output Voltage: 350V
  • Output Current per Channel: 150mA
  • Isolation Voltage: 5000Vrms
  • Package: 4-SMD, Gull Wing
