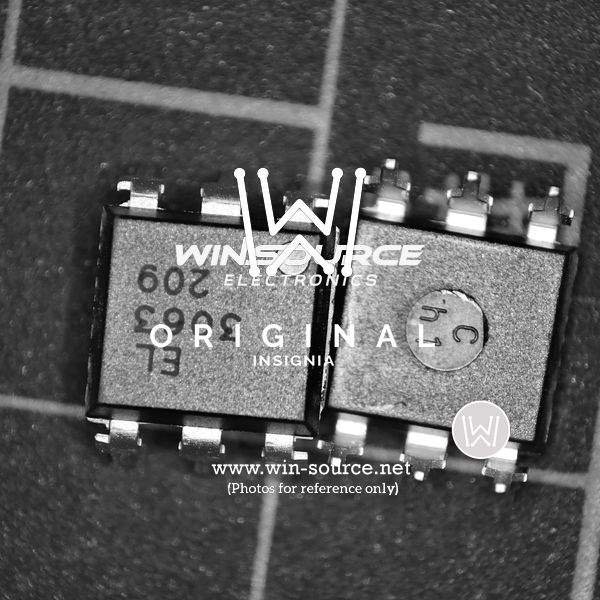

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Isolators - Optoisolators - Triac, SCR Output Optoisolators
Mfr Everlight Electronics Co Ltd
Package Tube
Product Status Active
Output Type Triac
Zero Crossing Circuit Yes
Number of Channels 1
Voltage - Isolation 5000Vrms
Voltage - Off State 600 V
Static dV/dt (Min) 1kV/µs
Current - LED Trigger (Ift) (Max) 5mA
Current - On State (It (RMS)) (Max) 100 mA
Current - Hold (Ih) 280µA (Typ)
Voltage - Forward (Vf) (Typ) 1.5V (Max)
Current - DC Forward (If) (Max) 60 mA
Temperature Range - Operating -55°C ~ 100°C
Mounting Type Through Hole
Package / Case 6-DIP (0.300", 7.62mm)
Supplier Device Package 6-DIP
Approval Agency CSA, DEMKO, FIMKO, NEMKO, SEMKO, UL
Base Product Number EL306
Standard Package 65 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.49.8000
Win Source Part Number 588547-EL3063
Ultra Librarian 3D Model Ultra Librarian EL3063 CAD Model

Description

The EL3063 is an optoisolator with a triac output.

  • Designed for: applications requiring isolated triac triggering or zero-crossing detection
  • Maximum Forward Current: 60 mA
  • Forward Voltage: 1.5V
  • Off-State Voltage: 600V
  • Maximum On-State Current: 100 mA
  • Channels: single
  • Isolation Voltage: 5000Vrms
  • Features: zero crossing circuit
  • Minimum Static dV/dt: 1kV/μs
  • Package: 6-DIP
  • Mounting: through-hole
  • Operating Temperature Range: -55°C to 100°C
  • Approvals: CSA, DEMKO, FIMKO, NEMKO, SEMKO, and UL
