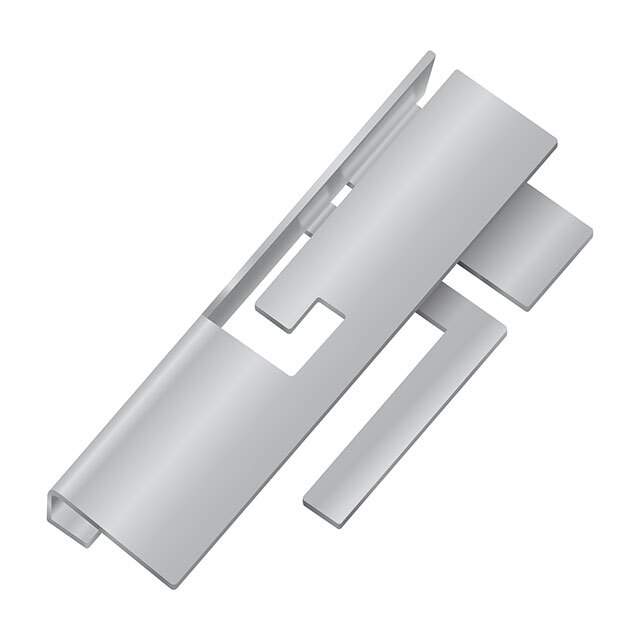

1000146 Real Image
Same model may have multiple batches, images only for reference.

1000146

Part No 1000146
Manufacturer Ethertronics/AVX
Catalog RF Antennas
Description RF ANT 2.4GHZ/4.9GHZ STAMPED MET / 2.4GHz, 4.9GHz, 5.2GHz, 5.8GHz Bluetooth, Wi-Fi, WLAN, Zigbee™ Stamped Metal RF Antenna 2.39GHz ~ 2.49GHz, 4.9GHz ~ 5.35GHz, 5.7GHz ~ 5.9GHz 2.5dBi, 3.5dBi, 3.5dBi, 3.5dBi Solder Surface Mount
Datasheet
1000146 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Antennas
Mfr Ethertronics/AVX
Series Prestta™
Package Tape & Reel
RF Family/Standard 802.15.4, Bluetooth, WiFi
Frequency Group UHF (2GHz ~ 3GHz) , SHF (f > 4GHz)
Frequency (Center/Band) 2.4GHz, 4.9GHz, 5.2GHz, 5.8GHz
Frequency Range 2.39GHz ~ 2.49GHz, 4.9GHz ~ 5.35GHz, 5.7GHz ~ 5.9GHz
Antenna Type Stamped Metal
Number of Bands 4
VSWR 1.6, 1.8, 1.5, 1.3
Gain 2.5dBi, 3.5dBi, 3.5dBi, 3.5dBi
Termination Solder
Mounting Type Surface Mount
Height (Max) 0.169" (4.30mm)
Applications Bluetooth, Wi-Fi, WLAN, Zigbee™
Standard Package 1,200
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8517.79.0000
Win Source Part Number 1351699-1000146
Ultra Librarian 3D Model Ultra Librarian 1000146 CAD Model

Description

The 1351699-1000146 RF Antenna is a high-quality stamped metal antenna used for Bluetooth, Wi-Fi, WLAN, and Zigbee™ applications.

  • Manufacturer: Ethertronics/AVX
  • Frequency Range: 2.39GHz ~ 2.49GHz, 4.9GHz ~ 5.35GHz, 5.7GHz ~ 5.9GHz
  • Gain: 2.5dBi, 3.5dBi, 3.5dBi, 3.5dBi
  • VSWR: 1.6, 1.8, 1.5, 1.3
  • Termination: Solder
  • Package: Tape and Reel
  • Antenna Type: Stamped Metal Antenna
  • Bands: Four
  • Height: 0.169" (4.30mm)
  • Standard Package: 1,200
  • ECCN: EAR99
