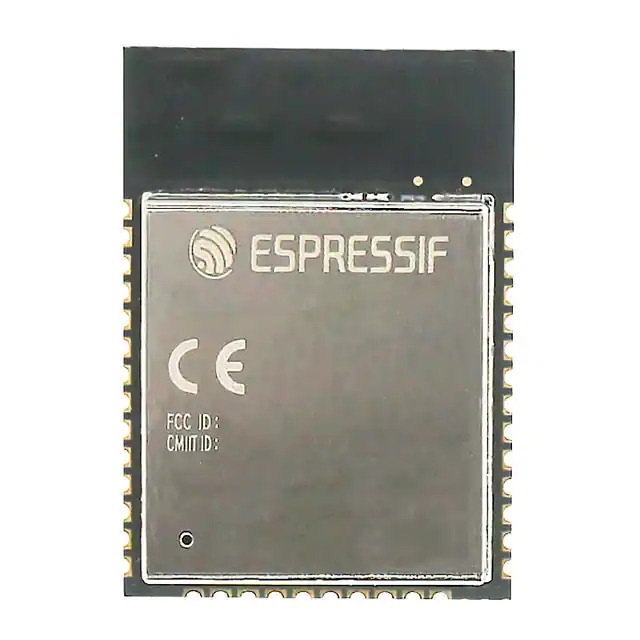

Same model may have multiple batches, images only for reference.
ESP32-WROOM-32E-N16 Espressif
Same model may have multiple batches, images only for reference.

ESP32-WROOM-32E-N16

Part No ESP32-WROOM-32E-N16
Manufacturer Espressif
Catalog RF Transceiver Modules
Description RF TXRX MOD WIFI TRACE ANT SMD / Bluetooth, WiFi 802.11b/g/n, Bluetooth v4.2 +EDR, Class 1, 2 and 3 Transceiver Module 2.4GHz ~ 2.5GHz Integrated, Trace Surface Mount
Datasheet
ESP32-WROOM-32E-N16 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Transceiver Modules and Modems
Mfr Espressif Systems
Series ESP32
Package Tape & Reel
Product Status Active
RF Family/Standard Bluetooth, WiFi
Protocol 802.11b/g/n, Bluetooth v4.2 +EDR, Class 1, 2 and 3
Modulation CCK, DSSS, OFDM
Frequency 2.4GHz ~ 2.5GHz
Data Rate 150Mbps
Power - Output 20dBm
Sensitivity -98dBm
Serial Interfaces ADC, GPIO, I²C, I²S, PWM, SDIO, SPI, UART
Antenna Type Integrated, Trace
Utilized IC / Part ESP32-D0WD-V3
Memory Size 16MB Flash, 448kB ROM, 536kB SRAM
Voltage - Supply 3V ~ 3.6V
Current - Receiving -
Current - Transmitting -
Mounting Type Surface Mount
Temperature Range - Operating -40°C ~ 85°C
Package / Case 38-SMD Module
Base Product Number ESP32
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 5A992C
HTSUS 8517.62.0090
Win Source Part Number 1370891-ESP32-WROOM-32E-N16
Ultra Librarian 3D Model Ultra Librarian ESP32-WROOM-32E-N16 CAD Model

Description

The ESP32-WROOM-32E-N16 is a wireless RF transceiver module and modem designed by Espressif Systems. It operates in the frequency range of 2.4GHz to 2.5GHz and supports Bluetooth and WiFi protocols.

  • Frequency: 2.4GHz to 2.5GHz
  • Protocol: Bluetooth, WiFi
  • Package: 38-SMD
  • Mounting Type: Surface Mount
  • Voltage Supply: 3V to 3.6V
  • Flash Memory: 16MB
  • ROM: 448kB
  • SRAM: 536kB
  • Data Rate: 150Mbps
  • Serial Interfaces: ADC, GPIO, I²C, I²S, PWM, SDIO, SPI, UART
  • Power Output: 20dBm
  • Sensitivity: -98dBm
