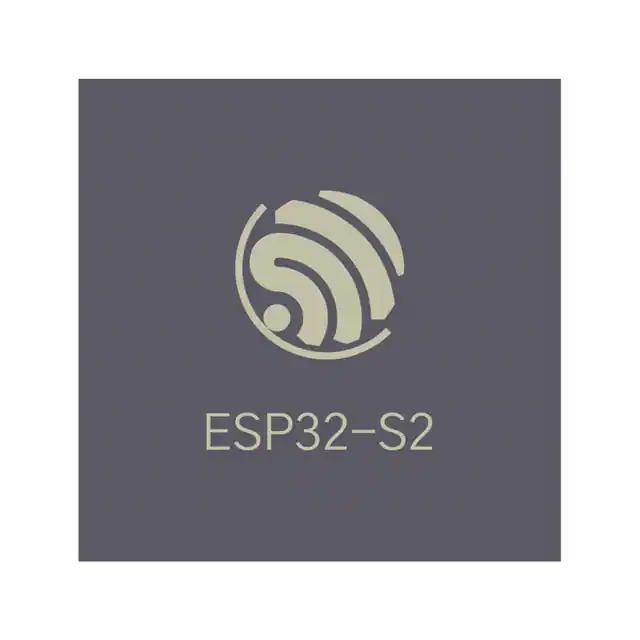

ESP32-S2R2 Espressif
Same model may have multiple batches, images only for reference.

ESP32-S2R2

Part No ESP32-S2R2
Manufacturer Espressif
Catalog RF Transceiver Modules
Description SMD WI-FI IC, ESP32-S2R2, SINGLE / WiFi 802.11b/g/n Transceiver Module 2.4GHz Antenna Not Included Surface Mount
Datasheet
ESP32-S2R2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Transceiver Modules and Modems
Mfr Espressif Systems
Series ESP32
Package Tape & Reel
Product Status Active
RF Family/Standard WiFi
Protocol 802.11b/g/n
Modulation -
Frequency 2.4GHz
Data Rate 150Mbps
Power - Output 19.5dBm
Sensitivity -97dBm
Serial Interfaces ADC, GPIO, I²C, I²S, SPI, PWM, UART, USB
Antenna Type Antenna Not Included
Utilized IC / Part ESP32-S2
Memory Size 2MB PSRAM, 128kB ROM, 320kB SRAM
Voltage - Supply 2.8V ~ 3.6V
Current - Receiving 63mA ~ 68mA
Current - Transmitting 160mA ~ 310mA
Mounting Type Surface Mount
Temperature Range - Operating -40°C ~ 85°C (TA)
Package / Case 56-VFQFN Exposed Pad
Base Product Number ESP32-S2
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 5A992C
HTSUS 8517.62.0090
Win Source Part Number 1370917-ESP32-S2R2
Ultra Librarian 3D Model Ultra Librarian ESP32-S2R2 CAD Model

Description

The ESP32-S2R2 is a reliable RF transceiver module and modem developed by Espressif Systems.

  • Frequency Range: 2.4GHz
  • Protocol: WiFi
  • Voltage Supply Range: 2.8V to 3.6V
  • Memory: 2MB PSRAM, 128kB ROM, and 320kB SRAM
  • Data Rate: 150Mbps
  • Mounting Type: Surface Mount
  • Package: 56-VFQFN Exposed Pad
  • Serial Interfaces: ADC, GPIO, I²C, I²S, SPI, PWM, UART, and USB
  • Power Output: 19.5dBm
  • Sensitivity: -97dBm
