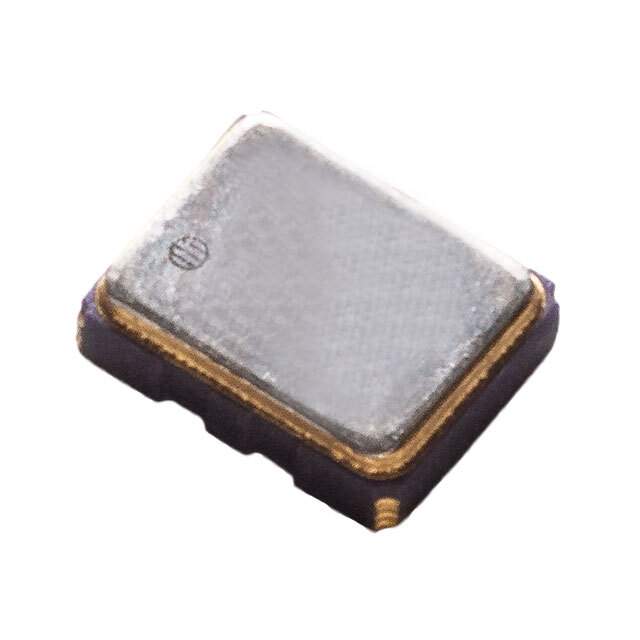

The TG-5021CE is a temperature compensated crystal oscillator (TCXO) manufactured by Epson. It is designed to provide a highly stable and accurate clock signal for various electronic devices, ensuring precise timing and synchronization.

Applications:

• GPS Modules
• Wireless Communication Devices
• Real-Time Clocks (RTC)
• Audio and Video Equipment
• Industrial Control Systems

Features:

• High Frequency Stability
• Low Phase Noise
• Low Power Consumption
• Compact Package Size
• Wide Operating Temperature Range
• Excellent Frequency Accuracy

Benefits:

• Precise Timing: High frequency stability ensures accurate timing in critical applications.
• Improved Signal Quality: Low phase noise minimizes signal distortion, enhancing overall system performance.
• Extended Battery Life: Low power consumption extends battery life in portable devices.
• Compact Design: Small package size allows for high-density board layouts.
• Reliable Operation: Wide operating temperature range ensures reliable operation in harsh environments.

Technical Specifications:

The TG-5021CE is a TCXO with a frequency range typically between 10 MHz and 52 MHz, but most commonly found around 24 MHz. It offers high frequency stability over a wide temperature range, typically ±0.5 ppm to ±2.5 ppm. The low phase noise ensures a clean output signal with minimal jitter. It operates on a low supply voltage, typically 1.8V to 3.3V, and consumes very little power. The device is available in a small ceramic package, typically 2.5mm x 2.0mm or smaller.

Epson's TG-5021CE TCXO is designed with advanced crystal oscillator technology to achieve high performance and reliability. The temperature compensation circuitry ensures that the output frequency remains stable even when the temperature changes. The low phase noise minimizes signal distortion, which is critical in applications such as wireless communication and audio/video processing. The low power consumption makes it suitable for battery-powered devices, and the small package size allows it to be easily integrated into compact electronic systems.

Epson's TG-5021CE is a suitable choice for applications requiring a highly stable and accurate clock signal. Its combination of high frequency stability, low phase noise, low power consumption, and small package size makes it a versatile component for a wide range of electronic systems.
