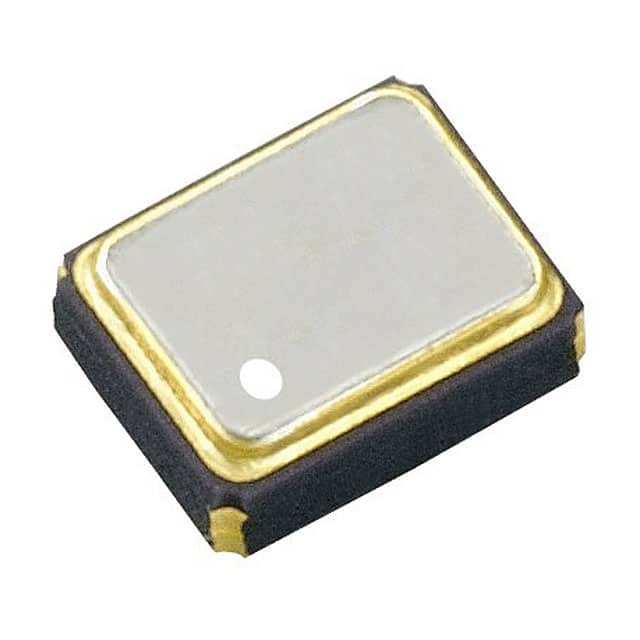

TG-5006CG-12H 26.0000M3
Same model may have multiple batches, images only for reference.

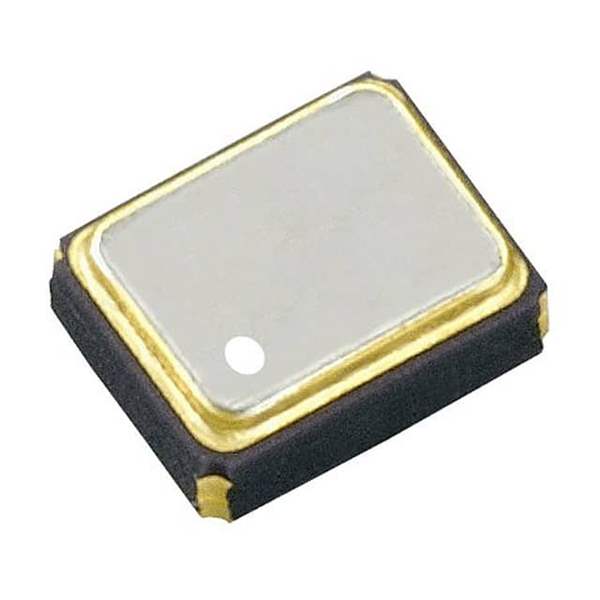

TG-5006CG-12H 26.0000M3

Part No TG-5006CG-12H 26.0000M3
Manufacturer Epson Company
Catalog Oscillators
Description XTAL OSC VCTCXO 26.0000MHZ SNWV
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals
Estimated Pruduction Lead Time 41 Weeks
Features 26 MHz VCTCXO Clipped Sine Wave Oscillator 1.7V ~ 3.3V - 6-SMD, No Lead
Manufacturer Epson Company
Series TG-5006CG
Package Reel - TR
Operating Temperature Range -30°C ~ 85°C
Mounting Surface Mount
Package 6-SMD, No Lead
MSL Level 2A (4 Weeks)
ECCN EAR99
HTSUS 8542.39.0001
Other Part Number TG-5006CG-12H 26.0000M3-ND, TG-5006CG-12H26.0000M3, X1G004211000312
Quantity per package 250
Popularity High
Supply and Demand Status Balance
Win Source Part Number 936445-TG-5006CG-12H 26.0000M3
Ultra Librarian 3D Model Ultra Librarian TG-5006CG-12H 26.0000M3 CAD Model

Description

The Epson Company TG-5006CG-12H 26.0000M3 is a 26 MHz VCTCXO Clipped Sine Wave Oscillator.

  • Voltage Rating: 1.7V ~ 3.3V
  • Package: 6-SMD, No Lead
  • Packaging: reel packaged
  • Units per Package: 250
  • Operating Temperature Range: from -30°C to 85°C
  • Series: TG-5006CG
  • Category: Crystals
  • Supply and demand status: balanced
