Same model may have multiple batches, images only for reference.

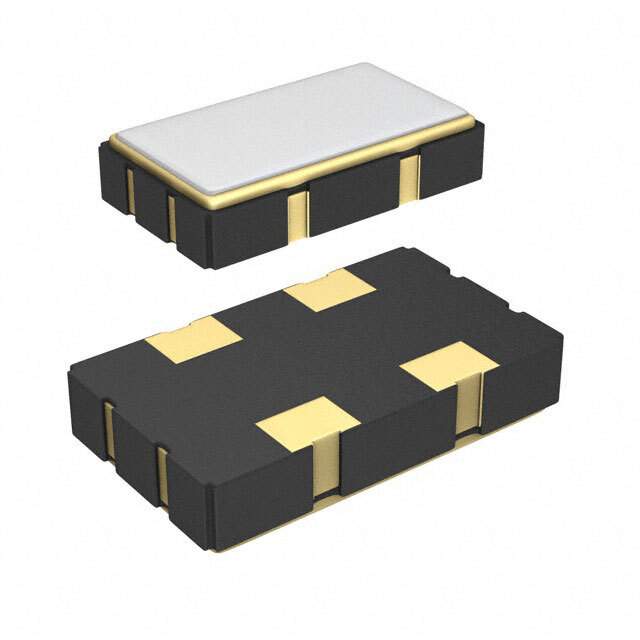

SG5032CAN 40.000000M-TJGA3 Real Image
Same model may have multiple batches, images only for reference.

SG5032CAN 40.000000M-TJGA3

Part No SG5032CAN 40.000000M-TJGA3
Manufacturer Epson Company
Catalog Oscillators
Description XTAL OSC XO 40.0000MHZ CMOS SMD / 40 MHz XO (Standard) CMOS Oscillator 1.6V ~ 3.6V Standby (Power Down) 4-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr EPSON
Series SG5032
Package Tape & Reel (TR)
Base Resonator Crystal
Type XO (Standard)
Frequency 40 MHz
Function Standby (Power Down)
Output CMOS
Voltage - Supply 1.6V ~ 3.6V
Frequency Stability ±50ppm
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 3mA
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) 0.051" (1.30mm)
Current - Supply (Disable) (Max) 2.7µA
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Other Names X1G004451001212,SG5032CAN40.000000M-TJGA3,SG5032CAN 40.000000M-TJGA3-ND
Standard Package 250
Win Source Part Number 1011879-SG5032CAN 40.000000M-TJGA3
Ultra Librarian 3D Model Ultra Librarian SG5032CAN 40.000000M-TJGA3 CAD Model

Description

The SG5032CAN 40.000000M-TJGA3 is a standard type XO oscillator from EPSON.

  • Frequency: 40 MHz
  • Mounting: SMD (SMT)
  • Output: CMOS
  • Frequency Stability: ±50ppm
  • Maximum Supply Current: 3mA
  • Maximum Supply Current (Disabled): 2.7µA
  • Voltage Supply: 1.6V to 3.6V
  • Package: 4-SMD, No Lead
  • Packaging: Tape & Reel (TR)
  • Standard Package: 250
  • Operating Temperature: -40°C to 85°C
  • Dimension: 0.197" L x 0.126" W (5.00mm x 3.20mm)
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8542.39.0001
