Same model may have multiple batches, images only for reference.

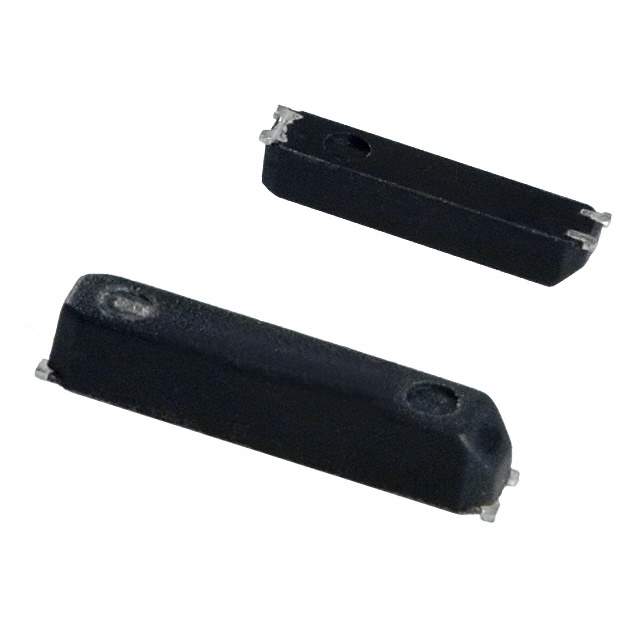

MC-146 32.7680KA-A0:ROHS Real Image
Same model may have multiple batches, images only for reference.

MC-146 32.7680KA-A0:ROHS

Part No MC-146 32.7680KA-A0:ROHS
Manufacturer Epson Company
Catalog Crystals
Description CRYSTAL 32.7680KHZ 12.5PF SMD / 32.768 kHz ±20ppm Crystal 12.5pF 65 kOhms 4-SMD, Flat Leads
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr EPSON
Series MC-146
Package Tape & Reel
Type kHz Crystal (Tuning Fork)
Frequency 32.768 kHz
Frequency Tolerance ±20ppm
Load Capacitance 12.5pF
ESR (Equivalent Series Resistance) 65 kOhms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case 4-SMD, Flat Leads
Dimension 0.264" L x 0.059" W (6.70mm x 1.50mm)
Height - Seated (Max) 0.055" (1.40mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0010
Standard Package 1,000
Win Source Part Number 1077037-MC-146 32.7680KA-A0:ROHS
Ultra Librarian 3D Model Ultra Librarian MC-146 32.7680KA-A0:ROHS CAD Model

Description

The MC-146 is a kHz crystal (tuning fork) manufactured by Epson.

  • Component Type: kHz crystal (tuning fork)
  • Series: MC-146 series
  • Package: tape and reel package
  • Standard Package: 1000
  • ECCN: EAR99 compliant
  • HTSUS Code: 8541.60.0010
  • Quality: high-quality component
  • Ideal for: use in a wide range of electronic devices
