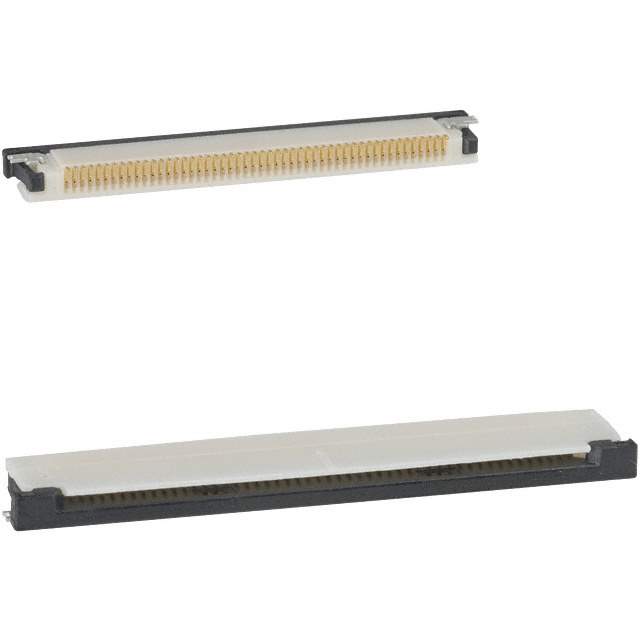

62684-502100ALF Real Image
Same model may have multiple batches, images only for reference.

62684-502100ALF

Part No 62684-502100ALF
Manufacturer Amphenol FCI
Catalog FFC, FPC (FlatFlexible) Connectors
Description PLASTIC TAPE PACKAGED | CONN FPC TOP 50POS 0.50MM R/A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Amphenol ICC (FCI)
Packaging Reel
Flat Flex Type FPC
Mounting Style SMT, Right Angle
Connector/Contact Type Contacts, Top
Number of Positions 50
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.079" (2.00mm)
Locking Feature Slide Lock
Cable End Type Tapered
Contact Material Phosphor Bronze
Contact Finish Gold
Dielectric Material Polyamide (PA9T), Nylon 9T, Glass Filled
Actuator Material Thermoplastic, Glass Filled
Features Solder Retention, Zero Insertion Force (ZIF)
Voltage Rating 50V
Temperature Range - Operating -55°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Contact Finish Thickness 2.00μin (0.051μm)
Housing Color Beige
Actuator Color Black
Mating Cycles 20
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 758530-62684-502100ALF
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Family Name 62684
Introduction Date February 15, 2005
ECCN EAR99
Country of Origin Malaysia
Halogen Free Not Compliant
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian 62684-502100ALF CAD Model

Description

The 758530-62684-502100ALF is a high-quality connector manufactured by Amphenol ICC (FCI).

  • Pitch: 0.020" (0.50mm)
  • Height Above Board: 0.079" (2.00mm)
  • Locking Feature: Slide Lock
  • RoHS: Non-compliant
  • ECCN: EAR99
  • REACH: Unaffected
  • HTSUS: 8532.24.0040
  • Packaging: Reel
  • Manufacturer Pack Quantity: 1
