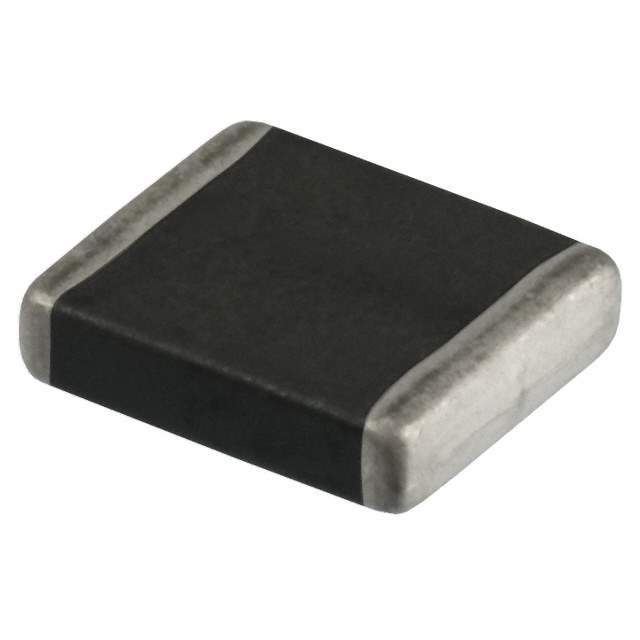

The CN2220K50G is a ceramic varistor manufactured by EPCOS (TDK), designed for transient voltage suppression (TVS). It's a surface-mount device (SMD) intended to protect electronic circuits from voltage spikes and surges, such as those caused by electrostatic discharge (ESD), lightning strikes, or inductive switching. The CN2220K50G is part of EPCOS's range of overvoltage protection devices and offers a compact and reliable solution for safeguarding sensitive components.

Applications:

• Power Supplies: Provides overvoltage protection for AC-DC and DC-DC power supplies.
• Consumer Electronics: Used in televisions, set-top boxes, and other consumer devices to protect against voltage surges.
• Industrial Automation: Protects industrial control systems and equipment from voltage transients.
• Telecommunications: Safeguards telecommunication equipment from lightning strikes and power line disturbances.
• Automotive Electronics: Used in automotive electronic control units (ECUs) to protect against voltage spikes.

Features:

• Surface Mount Design: Designed for surface mount technology (SMT) assembly.
• High Surge Current Capability: Capable of withstanding high surge currents without failure.
• Fast Response Time: Reacts quickly to transient voltage events.
• Low Leakage Current: Exhibits low leakage current under normal operating conditions.
• RoHS Compliant: Compliant with the Restriction of Hazardous Substances (RoHS) directive.

Benefits:

• Overvoltage Protection: Provides effective protection against voltage surges and transients.
• Compact Size: Small SMD package saves valuable board space.
• Improved Reliability: Enhances the reliability of electronic circuits by preventing damage from overvoltage.
• Cost-Effective Solution: Offers a cost-effective solution for surge protection.
• Wide Operating Temperature Range: Suitable for a wide range of operating environments.

The CN2220K50G varistor has specific voltage characteristics, including the varistor voltage (the voltage at which the varistor starts to conduct significantly) and the maximum clamping voltage. The energy handling capability (joules) is also an important parameter for selecting the appropriate varistor for a given application. Refer to the EPCOS (TDK) datasheet for detailed specifications, including surge current ratings, capacitance values, and operating temperature ranges. Proper soldering techniques are essential for reliable surface mount assembly.
