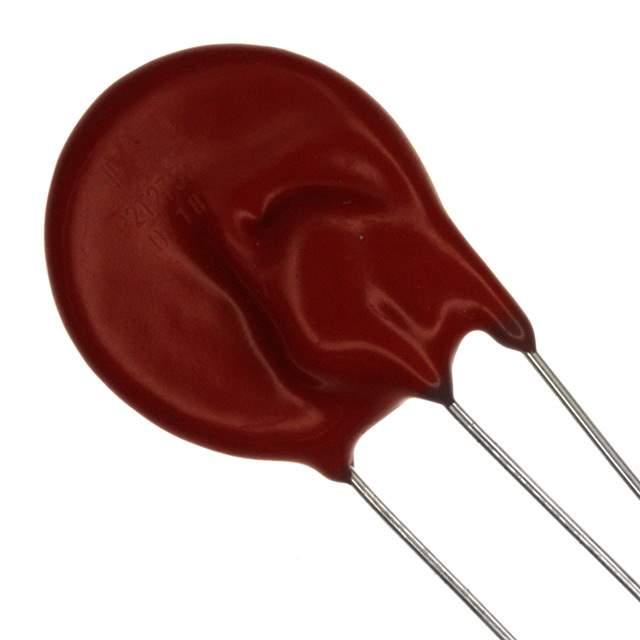

TMOV20RP250M Real Image
Same model may have multiple batches, images only for reference.

TMOV20RP250M

Part No TMOV20RP250M
Manufacturer Littelfuse Inc.
Catalog TVS - Varistors, MOVs
Description VARISTOR 390V 10KA DISC 20MM  /  390 V 10 kA Varistor 1 Circuit Through Hole Disc 20mm 3-Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Varistors, MOVs
Mfr Littelfuse Inc.
Series iTMOV®
Package Bulk
Maximum AC Volts 250 V
Maximum DC Volts 320 V
Varistor Voltage (Min) 351 V
Varistor Voltage (Typ) 390 V
Varistor Voltage (Max) 429 V
Current - Surge 10 kA
Energy 170J
Number of Circuits 1
Capacitance @ Frequency 1000 pF @ 1 MHz
Temperature Range - Operating -55°C ~ 85°C (TA)
Features Thermally Protected
Mounting Type Through Hole
Package / Case Disc 20mm 3-Lead
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.40.4000
Other Names 1294-TMOV20RP250M,-1024-TMOV20RP250M,TMOV20R250MP,TMOV20R250MP-ND,TMOV20RP250M-ND,F4041
Standard Package 400
Win Source Part Number 1135178-TMOV20RP250M
Ultra Librarian 3D Model Ultra Librarian TMOV20RP250M CAD Model

Description

The 1135178-TMOV20RP250M is a thermally protected iTMOV® varistor from Littelfuse Inc.

  • Application: Circuit Protection of TVS - Varistors and MOVs
  • Package: Bulk
  • Case Style: Disc 20mm 3-lead
  • Varistor Voltage Range: 351 V to 429 V
  • Capacitance: 1000 pF @ 1 MHz
  • Maximum AC Volts: 250 V
  • Maximum DC Volts: 320 V
  • Surge Current: 10 kA
  • Energy: 170J
  • Operating Temperature Range: -55°C to 85°C (TA)
  • Standard Package: 400
  • MSL Level: 1 (Unlimited)
  • HTSUS Code: 8533.40.4000
