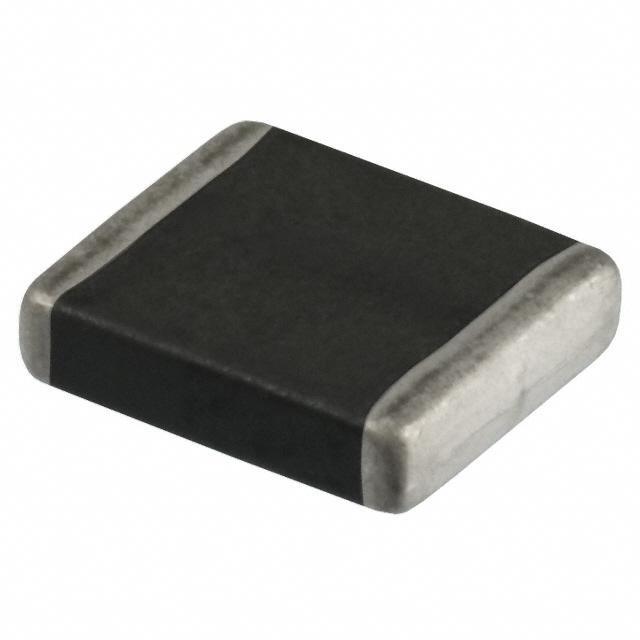

CN2220K30G

Part No CN2220K30G
Manufacturer EPCOS (TDK)
Catalog TVS - Varistors, MOVs
Description Multilayer technology
Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer EPCOS (TDK)
Varistor Voltage (Minimum) 42.3V
Varistor Voltage (Typ) 47V
Varistor Voltage (Maximum) 51.7V
Current - Surge 1.2kA
Energy 12J
Number of Circuits 1
Maximum AC Volts 30VAC
Maximum DC Volts 38VDC
Capacitance @ Frequency 4000pF @ 1kHz
Operating Temperature Range -55°C ~ 125°C (TA)
Mounting Surface Mount, MLCV
Package 2220 (5750 Metric)
RoHS State Request Verification
Win Source Part Number 1162582-CN2220K30G
Manufacturer Homepage www.epcos.com
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian CN2220K30G CAD Model

Description

CN2220K30G from EPCOS (TDK) is a varistor/MOV device used for surge and transient voltage protection in electronic circuits that need a compact front-line defense against overvoltage events. Components in this category are commonly applied in power input stages, industrial controls, consumer electronics, telecom interfaces, and general-purpose protection networks where brief voltage spikes can threaten downstream components. Engineers typically select EPCOS protection parts for established brand reliability, broad application relevance, and integration into designs that require robust surge handling. For maintenance, repair, and new design evaluation, CN2220K30G may be considered where MOV-based protection is appropriate, but exact electrical suitability should be confirmed from the official datasheet. The current lifecycle status for this part is information not available, so teams should verify supply continuity with authorized channels before committing to production. RoHS compliance information is also not available here and should be confirmed directly through manufacturer documentation or formal distributor compliance records.
