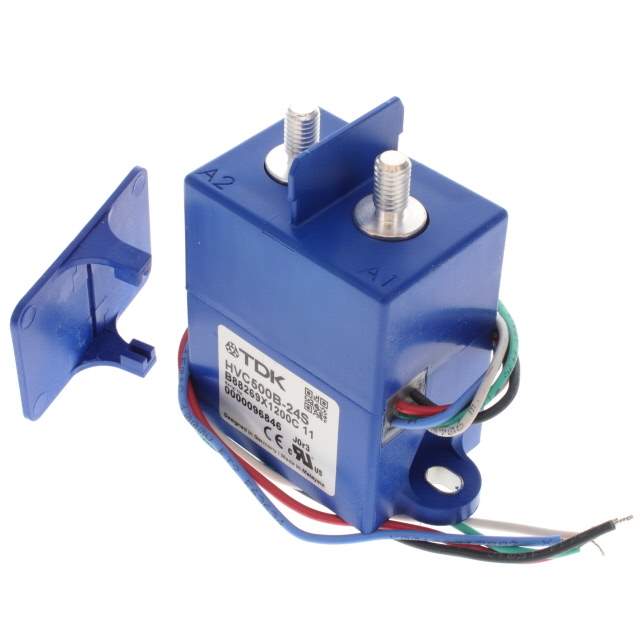

B88269X1200C011 Real Image
Same model may have multiple batches, images only for reference.

B88269X1200C011

Part No B88269X1200C011
Manufacturer EPCOS (TDK)
Catalog Contactors (Electromechanical)
Description HVC500B-24S / 500A 24V COIL STUC /
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays>Contactors (Electromechanical)
Mfr EPCOS - TDK Electronics
Series HVC
Package Bulk
Product Status Not For New Designs
Mounting Type Chassis Mount
Coil Voltage 24VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 500 A
Switching Voltage 900VDC - Max
Features Sealed - Hermetically
Termination Style Stud, Wire Leads
Temperature Range - Operating -40°C ~ 85°C
Must Operate Voltage 18 VDC
Must Release Voltage 2 VDC
Contact Material Copper Alloy
Operate Time 40 ms
Release Time 20 ms
Coil Current 250 mA
Coil Power 6W
Coil Resistance 96Ohms
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.49.0065
Other Names B88269X1200C11,HVC500B-24S,495-77554,B88269X1200C 11
Standard Package 1
Win Source Part Number 962484-B88269X1200C011
Ultra Librarian 3D Model Ultra Librarian B88269X1200C011 CAD Model

Description

The B88269X1200C011 is a hermetically sealed, SPST-NO (1 Form A) contactor from the HVC series of relays.

  • Coil Voltage: 24VDC
  • Coil Resistance: 96 ohms
  • Coil Current: 250mA
  • Mounting Type: Chassis mount
  • Contact Rating (Current): 500A
  • Switching Voltage: 900VDC - Max
  • Operate Time: 40ms
  • Release Time: 20ms
  • Package: Bulk
  • Termination: Stud and wire lead
  • Recommendation: Not recommended for new designs
